Product description

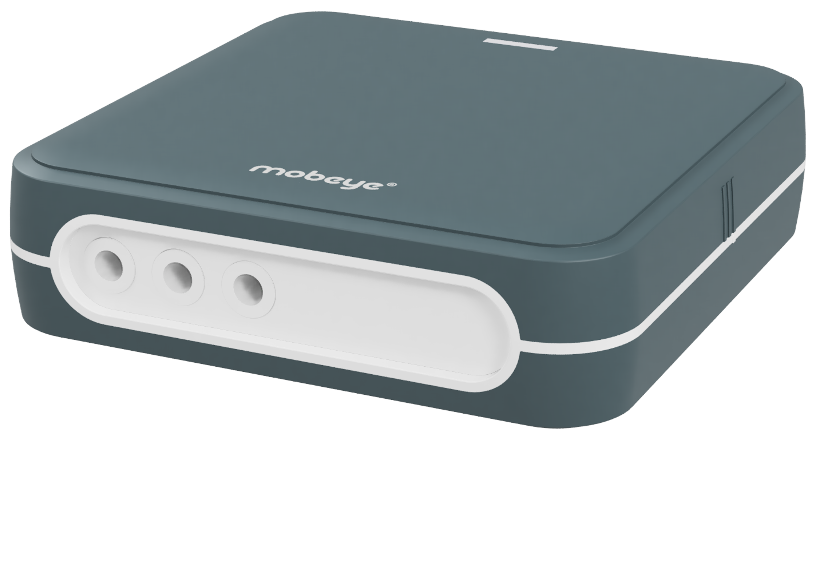

The Mobeye CM-Guard TwinLog is a voltage monitor, ideally suited as a battery guard for monitoring batteries and accumulators. In an alarm situation, it sends notifications via a push notification, phone call, SMS or email. In addition, it logs the analogue values and sends them to the online portal for display as a graph, meter and table.
Features:
- Alarm via app, call, SMS and email
- Alarms for analogue values that are too low or too high
- Complete voltage inspection in graph
- Mains failure monitoring (if connected to an external voltage supply)
- Two NO/NC/COM alarm inputs
- Siren
- Full insight into the device when connected to the Mobeye Internet Portal
If you are still looking for an analogue sensor, our 4G communication detectoris the ideal accessory for your installation
Applications
Deep discharge often causes a battery to become defective. By setting an alarm threshold, the contact persons receive a notification in good time to take action. The CML4055 has an (open collector) output that can be used to switch a battery or device.
The TwinLog can operate on its internal batteries for a prolonged period and thus independently of an external power source. If an external voltage supply is available, it is advisable to connect it. The power supply is then also monitored directly, and an alarm is triggered if it fails.
Specific situations in which the Twinlog CM Guard is widely used are as follows:
- Battery monitoring
- Battery surveillance
- Analogue sensors.
See the following link to view the SIM card costs of the standard supplied SIM card from the manufacturer: https://www.mobeye.com/sim-portal [mobeye.com]
Tip: Ours external cupboard is the ideal accessory for this application. The exterior is waterproof with an IP65 protection rating and is ideally suited to protect the heating system against various weather conditions.
Added value SIM/portal
As a SIM card, we advise activating the supplied Mobeye SIM card. This allows the device to communicate via both 4G LTE-M and 2G and is “multi-provider”. It selects the strongest local network, has excellent penetration capability and therefore provides a reliable connection. With the Mobeye SIM card, the device is also connected to the Mobeye Portal and the Mobeye Messages app. This provides extra security and user-friendliness. The status of one or more devices can be seen at a glance on the dashboard. Programming is done online, the receipt of test messages is checked automatically, and in the event of problems, contacts are alerted via app, call, text message and/or email. Forwarding to an alarm receiving centre (ARC) is also possible. The SIM card costs €4/month* excl. VAT (flat fee for normal use), (annual) payment is online, or -upon request- by invoice. Can be used throughout Europe. *Please note: prices may vary. See the link below for current prices.
A personal SIM card is also possible (NL: KPN or Vodafone, NOT T-Mobile or subsidiaries). The device will then work (solely) via 2G and the Mobeye Portal functions will cease to apply. In the event of an alarm, it will call and/or text (to a maximum of 5 numbers). Please note that a pay-as-you-go card expires if it is not used for too long.
Click on the following link to view the SIM card costs of the standard SIM card provided by the manufacturer: https://www.mobeye.com/sim-portal [mobeye.com]
Demo portal all models
Using the details below, you can log in to a demo portal for all models. Here, you can select the model of your choice and see what you can configure, view, and what data you can keep track of and review.
Demo Portal:
URL: mymobeye.com
Username: guest
Password: mobeye
Tip: set the screen to “Dutch” using the globe icon in the top right.
*Note: upon purchasing some products on our webshop, a basic knowledge of electrical engineering is required (for installation).
