Product description

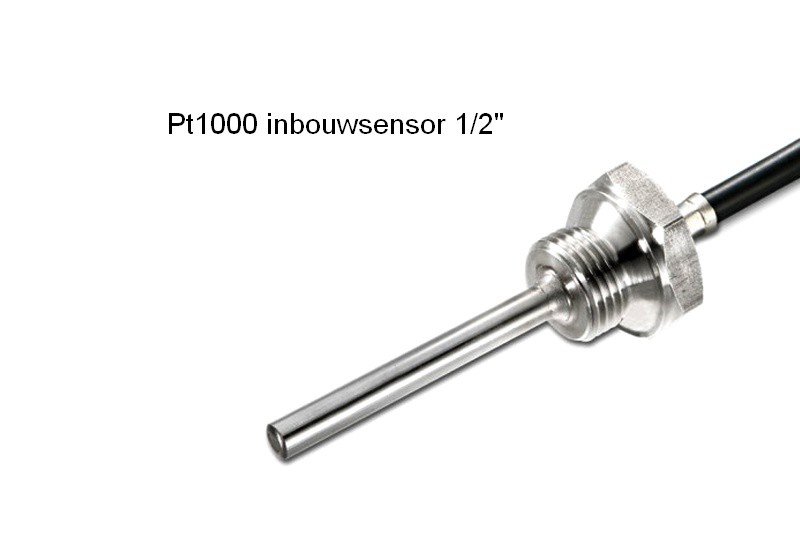

The Pt1000 rod sensor 200 mm is a robust immersion temperature sensor for accurately measuring and controlling temperatures in liquids and solid media. The sensor operates on the Pt1000 resistance principle (1000 Ω at 0 °C) and requires no power supply voltage, which ensures a reliable and stable measurement.
This rod sensor is made of stainless steel (V4A) and features a 1/2″ thread, making it easy to install in a pipe, vessel, boiler or immersion sleeve. Thanks to the immersion length of 200 mm, the sensor measures deeper into the medium, resulting in a representative temperature reading.
The sensor comes with a flexible 2-core PVC connection cable of 15 metres, which can be extended if desired up to a maximum of 50 metres without significant loss of measurement accuracy.
Product application
The Pt1000 200 mm rod sensor is suitable for:
- Temperature measurement in pipes, buffer vessels and boilers
- Applications in heating and plumbing engineering
- Measurement of liquid and medium temperatures
- Control engineering in combination with Pt1000-compatible thermostats and temperature controllers
Thanks to the fixed screw mounting, a good thermal coupling and reliable long-term measurement are guaranteed.
Please note: For some products in our webshop, a basic knowledge of electrical engineering is required.
