Product description

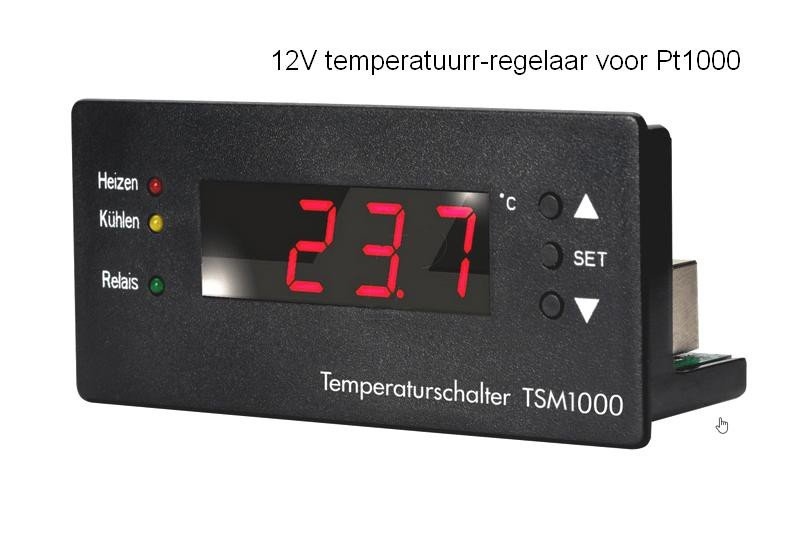

Temperature regulator at 12 volts
Temperature controller for one (or more) heating cables up to 1000 watts. Compact reading and control unit for installation. Universal design, also suitable for controlling heating or cooling by an electrical device.
This temperature controller is very easy to operate using 3 push buttons. You can set its switching temperature in steps of one (1) degree Celsius. Incidentally, you can also use it as an electronic thermometer, for reading/checking a temperature remotely.
The set in- and off-temperature remains stored in memory in the event of a power failure. The temperature controller has a memory (datalog function) for the highest and lowest measured temperature. By pressing 2 keys simultaneously, the measured value is erased.
Applications
Switch output 5 Ampère
The temperature controller is equipped with a voltage-free (no-potential) switch contact. This single-pole contact can switch between different voltages (e.g. 12 V, 24 V or 230 V). When the “ON” contact is pressed, the green light flashes.
The temperature controller operates on 12 volts DC, supplied by a (on-board) battery or the optional mains adapter. It has a low power consumption, which is important, for example, for use in a vehicle.
Sensor cable to temperature controller
The signal lead of the sensor can be extended up to 50 m. If there is a break in the sensor circuit or a short circuit, an error message appears and the relay contact is turned off.
