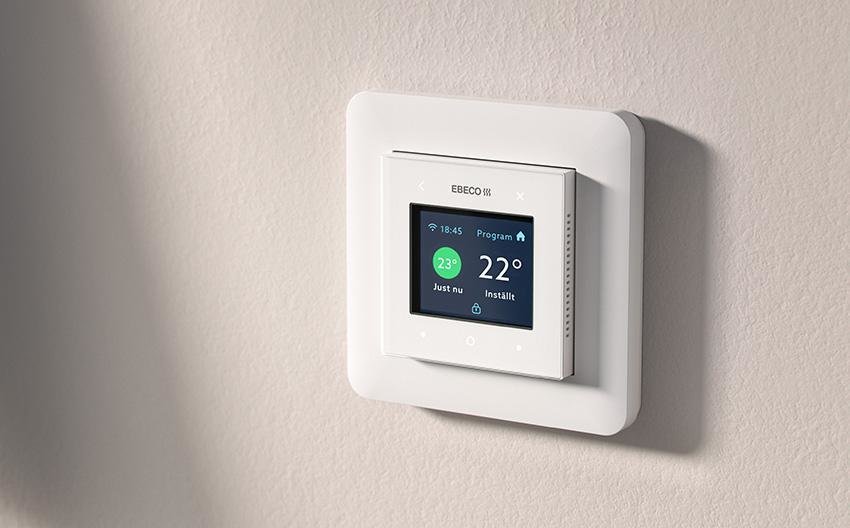

Product description
The floor thermostat is a stylish and modern control for underfloor heating. It has a color display and many options thanks to individually adjustable programs. Perfect for those who expect the best energy efficiency and want to be able to adjust the heating to their own needs. The floor thermostat has various programs and functions that ensure it’s nice and warm when you need it.
Applications
Suitable for almost all floor sensors
The floor thermostat is easy to install. The small installation depth means that the cable fits neatly into the box. There is a clear start-up guide to make programming easy. The floor thermostat is ideal for renovation purposes, as it is compatible with almost all floor sensors, even from other manufacturers. In many situations, the old sensor can remain in place in the floor and you only need to replace the thermostat. The thermostat has a built-in timer function that indicates when the floor heating can be switched on after curing.
Adjustable sensor values
NTC 2 kΩ
NTC 10 kΩ (preset)
NTC 12 kΩ
NTC 15 kΩ
NTC 22 kΩ
NTC 33 kΩ
NTC 47 kΩ
NTC 100 kΩ
Clear and easy to navigate
Thanks to easy-to-navigate and intuitive menus with clear icons for the various functions, the floor thermostat makes it easy for both the installation program and the end user. The 1.8-inch color display is clear, and the capacitive touch zones are outside the display area to make the various functions more transparent and user-friendly.
Optimum energy savings
The various programs are adjustable, and times and temperatures can be set separately. This makes the thermostat versatile and adaptable to many different environments and conditions.
RESIDENCE: Preset at 22 °C. Reduction of 5 °C from Mon-Wed from 08:00-15:00, Mon-Sat from 23:00-06:00. Time and temperature can be adjusted.
OFFICE: Preset to 22 °C. Reduction of 5 °C at all times except Mon-Fri 08:00-17:00. Time and temperature can be adjusted.
TIMER: Using the timer function, you can regulate the heat in rooms and facilities that are used less frequently. The heating is only turned on when necessary and remains on for the set time. After that, the heating goes into standby mode, for example for maintenance heating and frost protection.
DISTANCE CONTROL: With this program, you can switch the temperature between two preset values. This is done using, for example, a switch, a text message modem, or a WiFi device. Suitable when the heating is on in a summer house, mountain hut, shed, or where you want to control the heating from a central location. It is also possible to set the after-heating to slow down the temperature drop.
Simple operation via the app and insight into energy consumption
The Wi-Fi floor thermostat is easy to operate with the Ebeco Connect app. Because the EB-500 has an open API, it is also possible to make the installation part of your smart home. The EB-500 makes it easy to monitor your energy consumption. The thermostat clearly shows the energy consumption per year, month, or day.
The sensor cable can be extended up to 50 m.
Delivery includes floor sensors and front panels for Schneider Exxact and ELKO Plus/RS.
