Product description

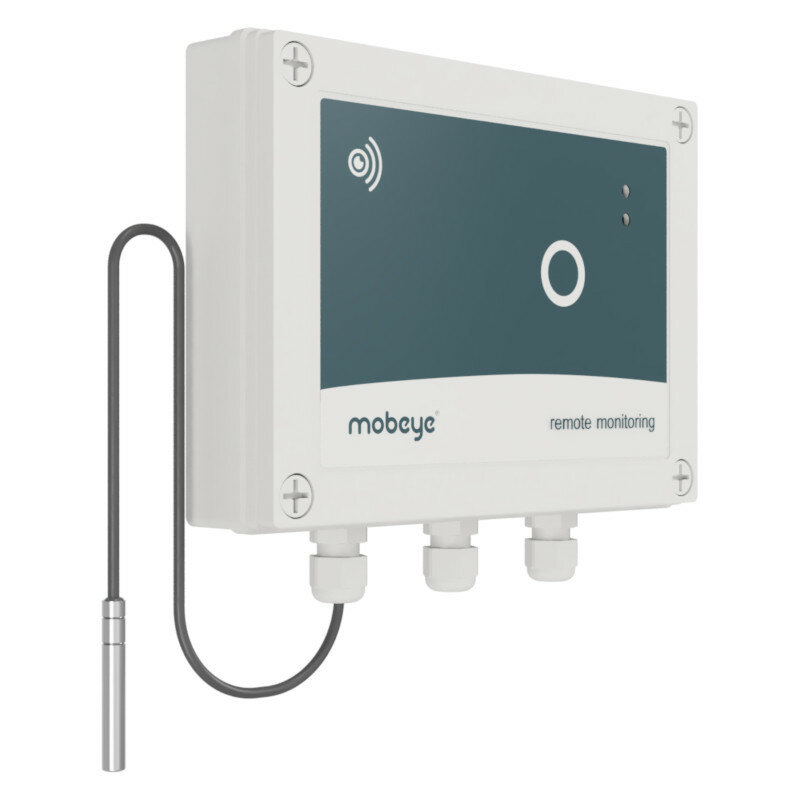

The Mobeye ThermoGuard TwinLog CML4275 is an extremely precise and user-friendly temperature monitor for outdoor use and industrial environments. As soon as the temperature deviates from the set limits, an alarm notification is triggered. In addition, it logs the temperature values at a self-chosen interval and displays them in the online portal. The CML4275 is suitable for professional temperature monitoring of conditioned spaces, storage locations and outdoor temperatures.
Features:
- Alarms are possible via app, call, text message and email
- Temperature alarms and logging
- Mains failure monitoring (if connected to an external voltage supply)
- Two NO/NC alarm inputs, output and siren
- Complete insight into the Mobeye Internet Portal
Applications
The 4G communication detector is digital and extremely accurate. In addition to the temperature sensor, the Mobeye ThermoGuard (CML4275) has two NO/NC inputs for connecting alarm contacts and sensors. This also monitors the status of a device or external sensor, such as an air conditioner or magnetic door contact. In the event of an alarm, the internal piezo siren can sound as an alarm indication. The CML4275 has an (open collector) output to enable an external device to be switched on.
Do you want to monitor your industrial installation extra closely? Then view our here IP65 outdoor cabinet which adds an extra layer of precise monitoring to your existing installation.
Added value SIM/portal
As a SIM card, we advise activating the supplied Mobeye SIM card. This allows the device to communicate via both 4G LTE-M and 2G and is “multi-provider”. It selects the strongest local network, has excellent penetration capability and therefore provides a reliable connection. With the Mobeye SIM card, the device is also connected to the Mobeye Portal and the Mobeye Messages app. This provides extra security and user-friendliness. The status of one or more devices can be seen at a glance on the dashboard. Programming is done online, the receipt of test messages is checked automatically, and in the event of problems, contacts are alerted via app, call, text message and/or email. Forwarding to an alarm receiving centre (ARC) is also possible. The SIM card costs €4/month* excl. VAT (flat fee for normal use), (annual) payment is online, or -upon request- by invoice. Can be used throughout Europe. *Please note: prices may vary. See the link below for current prices.
A personal SIM card is also possible (NL: KPN or Vodafone, NOT T-Mobile or subsidiaries). The device will then work (solely) via 2G and the Mobeye Portal functions will cease to apply. In the event of an alarm, it will call and/or text (to a maximum of 5 numbers). Please note that a pay-as-you-go card expires if it is not used for too long.
Click on the following link to view the SIM card costs of the standard SIM card provided by the manufacturer: https://www.mobeye.com/sim-portal [mobeye.com]
Demo portal all models
Using the details below, you can log in to a demo portal for all models. Here, you can select the model of your choice and see what you can configure, view, and what data you can keep track of and review.
Demo Portal:
URL: mymobeye.com
Username: guest
Password: mobeye
Tip: set the screen to “Dutch” using the globe icon in the top right.
Click on the following link to view the SIM card costs of the standard SIM card provided by the manufacturer: https://www.mobeye.com/sim-portal [mobeye.com]
Tip: Can't see your application here? Then see our complete range of temperature monitoring Here.
*Note: upon purchasing some products on our webshop, a basic knowledge of electrical engineering is required (for installation).
