Product description

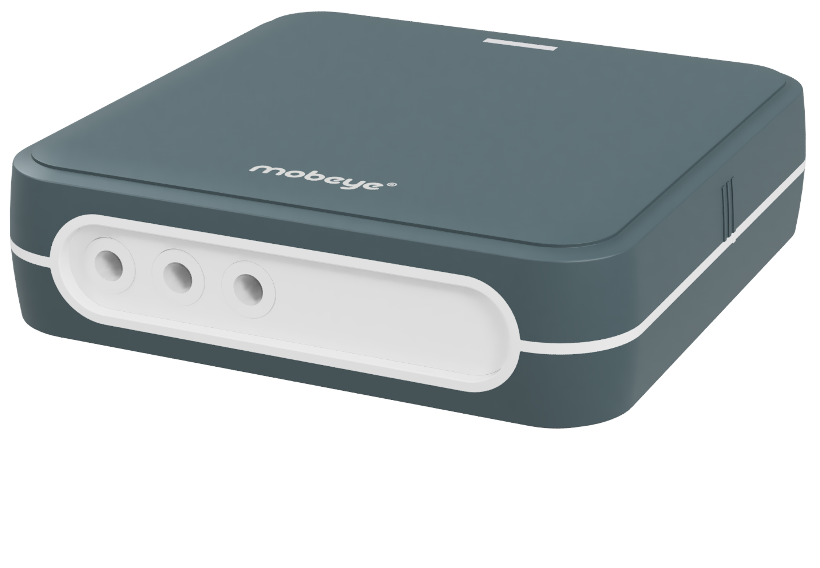

The Mobeye SISTM is a 2-channel module, suitable for all sensors with an output value between 0 and (maximum) 10 volts, or 4-20mA. By setting the measuring range, the conversion factor and the calibration value, the values can be read out as understandable values.
The Mobeye detectors Measure the values of virtually any industrial sensor. As soon as (min./max.) limit values are set and exceeded, the specified contacts receive an alarm notification. Sensor values are periodically logged and displayed in an online portal.
Features:
- Autonomous and reliable for reading universal sensors.
- Alarm via the app, phone call, text message and email
- Two alarm inputs through which two sensors run
- External power supply
Applications
Depending on the version, the CML4015 and the sensors operate entirely on batteries, or on a 12-24VDC power supply.
The CML4015-HP uses an external power supply for the SISTM and the sensors. With continuous measurement on the sensors, an alarm notification is initiated if the set limit is undershot or exceeded. The logging of the values takes place according to a configurable interval. The power supply is also monitored. If this fails, an alarm notification follows. Externally powered; SISTM and sensors operate on a 12-24V DC voltage source or via a mains adapter.
Do you prefer a module that is fully battery-powered and provides power for both the SISTM and the sensors? See the 2-channel module CML4015-LP .
Connectivity: 4G LTE-M + 2G EGSM Quad band
Added value SIM/portal
As a SIM card, we advise activating the supplied Mobeye SIM card. This allows the device to communicate via both 4G LTE-M and 2G and is “multi-provider”. It selects the strongest local network, has excellent penetration capability and therefore provides a reliable connection. With the Mobeye SIM card, the device is also connected to the Mobeye Portal and the Mobeye Messages app. This provides extra security and user-friendliness. The status of one or more devices can be seen at a glance on the dashboard. Programming is done online, the receipt of test messages is checked automatically, and in the event of problems, contacts are alerted via app, call, text message and/or email. Forwarding to an alarm receiving centre (ARC) is also possible. The SIM card costs €4/month* excl. VAT (flat fee for normal use), (annual) payment is online, or -upon request- by invoice. Can be used throughout Europe. *Please note: prices may vary. See the link below for current prices.
A personal SIM card is also possible (NL: KPN or Vodafone, NOT T-Mobile or subsidiaries). The device will then work (solely) via 2G and the Mobeye Portal functions will cease to apply. In the event of an alarm, it will call and/or text (to a maximum of 5 numbers). Please note that a pay-as-you-go card expires if it is not used for too long.
Click on the following link to view the SIM card costs of the standard SIM card provided by the manufacturer: https://www.mobeye.com/sim-portal [mobeye.com]
Demo portal all models
Using the details below, you can log in to a demo portal for all models. Here, you can select the model of your choice and see what you can configure, view, and what data you can keep track of and review.
Demo Portal:
URL: mymobeye.com
Username: guest
Password: mobeye
Tip: set the screen to “Dutch” using the globe icon in the top right.
Tip: A battery monitor is essential for monitoring the analogue boundaries and provides insight into the voltage trend. See the following link to view the SIM card costs of the standard supplied SIM card from the manufacturer:https://www.mobeye.com/sim-portal [mobeye.com]
*Note: upon purchasing some products on our webshop, a basic knowledge of electrical engineering is required (for installation).
