Product description

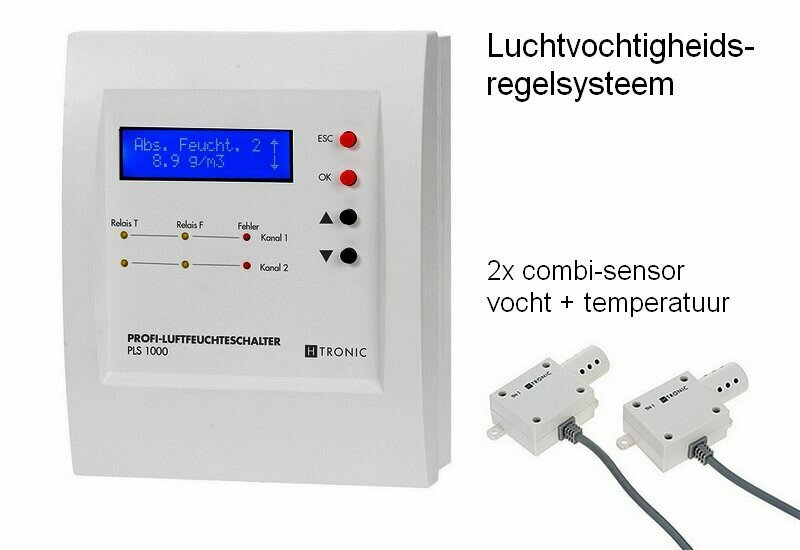

Humidity control with 5 programs (menu-driven) and 4 relays with separate on/off switching contacts.
The humidity control system works with two sensors in separate rooms, for measuring the relative humidity and temperature.
Based on these values, the control system determines the absolute humidity and the respective dew points.
Room fans for supply and exhaust air can be controlled directly via built-in non-contact relays.
Applications: measuring humidity and temperature, automatic or manual ventilation, drying or humidifying rooms such as wine cellars, kitchens, sanitary areas. Delta-T cooling. TF switch. Control of equipment for drying and humidification.
Also check the Moisture and Temperature Switch.
Applications
Humidity control with 5 programs
Through the main menu, you can choose from five built-in programs:
- Measuring + displaying for each channel of: temperature, relative humidity, dew point, absolute humidity
- Ventilation of humid spaces, such as (wine) cellars. Control of suction and/or exhaust fans and automatic prevention of condensation formation.
- Cooling with outdoor air. Turning on the fan(s) when the outdoor temperature is lower than the indoor temperature. Adjustable time delay to prevent flickering.
- Climate control for controlling fans, heating and cooling equipment, with extended timer functions.
- Manually operating each of the 4 relays separately.
The sensor cables can be extended up to 50 m. The control system features wire breakage detection for both sensors. The enclosure is suitable for wall mounting in a 35 mm DIN rail installation.
Please note: Basic knowledge of electronics is required.
*Note: upon purchasing some products on our webshop, a basic knowledge of electrical engineering is required (for installation).
PDF of complete manual, including the NL version!
