With this automatic water stop, you protect your equipment, installations, and spaces against the effects of water leakage. As soon as the sensor detects water, the water supply is immediately shut off and the connected mains power is also switched off at the same time. This allows leaks to be quickly contained and significantly reduces the risk of costly water damage.
The set is supplied complete with all required components and connecting cables, making a reliable leak detection solution easy to implement.
Protection against water damage
Water leakage can be caused by defective pumps, broken hoses, loose connections, or malfunctions in technical installations. This water alarm immediately triggers action as soon as water is detected at the monitored location.
For even faster detection, a water detection cable can be used as an option. This detection cable reacts to moisture over its entire length and is particularly suitable for larger surfaces or difficult-to-reach places.
Automatic shut-off of the water supply
The included magnetic valve is placed in the water supply line. Under normal circumstances, the valve is open and water can flow freely. As soon as a leak is detected, the alarm unit cuts the power, causing the valve to automatically close and stop the water supply.
The valve operates at mains pressure and can be mounted horizontally or vertically. Depending on the application, it is available in various connection sizes.
Turns off connected equipment
In addition to shutting off the water supply, the system can also shut down connected equipment. For example, pumps, household appliances, or technical installations can be connected to the alarm unit via a distribution socket.
When a leak is detected, the 230-volt outlet is immediately de-energized. This automatically shuts off connected appliances, providing additional protection against damage or malfunctions.
Reliable water detection
The alarm unit is activated only when both detection points of the sensor come into contact with water simultaneously. This limits unwanted notifications caused by condensation or splash water.
The standard water sensor comes with a 10-meter connection cable and can be easily installed in locations where leakage is possible, such as:
- Under washing machines
- For boilers and hot water installations
- Under pumps
- Around technical installations
- In kitchens and utility rooms
- In server rooms or technical rooms
The sensor can be mounted both horizontally and vertically.
Simple to use
The installation is designed as a complete plug & play solution. After mounting the magnetic valve and installing the sensor, the system is immediately ready for use. An additional advantage is that the water supply can also be manually shut off by disconnecting the power plug.

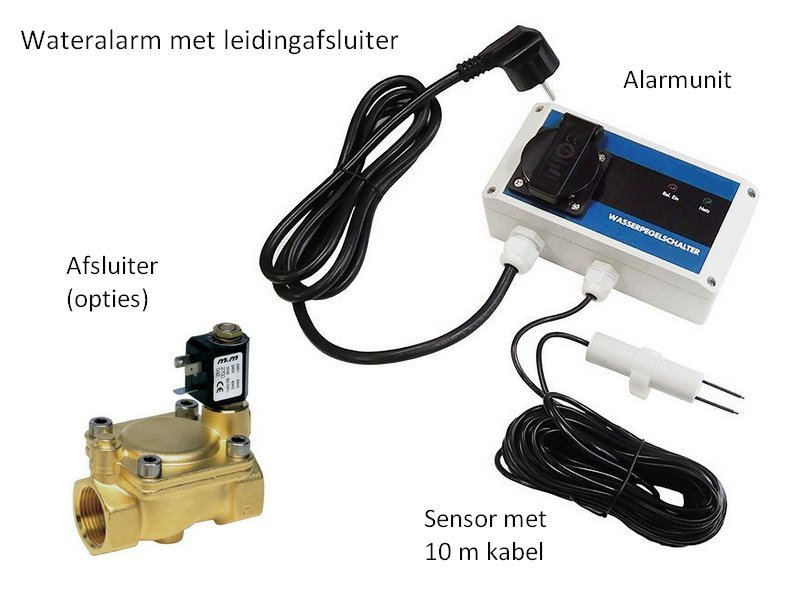

Contents of the set
- Electronic water alarm unit
- Water sensor (depending on the option chosen)
- Brass magnetic valve
- Connector with steering cable
- Required connection cables
Applications
This water alarm set is suitable for securing:
- Washing machines and dishwashers
- Pump systems
- Water pipes
- Technical installations
- Storage tanks
- Server and technical rooms
- Industrial installations and machine sets
Please note: For some products in our web shop, basic knowledge of electrical engineering is required.
