With this automatic pond filler regulator, you can keep the water level of a pond, swimming pool, water reservoir or basin fully automatically at the correct level. The system continuously monitors the water level and automatically refills with tap water if necessary. This prevents the water level from dropping too low due to evaporation, leaks or normal use.

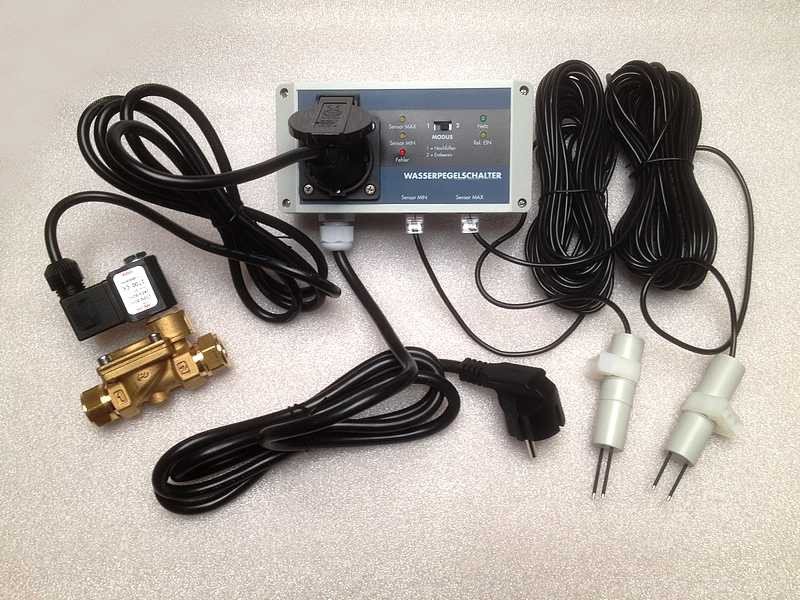

The set consists of a control unit, two level sensors and a magnetic valve. The controller is placed inside, preferably near the water supply and the valve. Thanks to the included wiring and preconfigured components, installation is easy to carry out.
Suitable for use in ponds, swimming pools and basins made of plastic, concrete, metal and other materials.
Automatic level control
The system operates with two level sensors mounted at different heights.
As soon as the water level below the bottom sensor drops, the controller detects a water shortage and the magnetic valve opens automatically. This allows fresh tap water to flow into the pond or basin. When the water level reaches the set maximum again, the upper sensor sends a signal to the controller, after which the valve is immediately closed.
This automatic cycle repeats itself again and again without manual intervention. This keeps the water level stable, even during holidays or longer periods of absence.
Accurate measurement with MIN and MAX sensor
By determining the position of the MIN and MAX sensors yourself, you can set the desired operating range of the installation. A slight difference in level is possible, but for stable operation it is recommended to maintain sufficient distance between the two sensors.
To determine the ideal mounting position, it may be useful to temporarily attach the sensors to a PVC tube or other support structure. After the optimal position has been determined, the sensors can be permanently mounted using the included mounting accessories.
The sensors are easily accessible for inspection, maintenance or cleaning.
Industrial quality solenoid valve
The included normally closed (NC) solenoid valve is manufactured to industrial standards and comes with 15 mm strain relief connections. This allows the valve to be quickly installed into an existing water line without soldering.
The valve is controlled directly by the controller and opens only when water replenishment is necessary. This ensures reliable and safe operation of the system.
Easy installation
The set is supplied complete with sensors, connecting cables and a magnetic valve. The sensor cables are 10 meters long and can be extended if desired with a standard RJ45 data cable to a maximum distance of approximately 50 meters.
Thanks to its clear connections, the system can be quickly put into use for both private and professional applications.
Contents of the set
- Niveauregulator WPS-3000+
- 2 level sensors
- Magnetic valve 15 mm (normally closed)
- Connection cables
- Pre-assembled steering cable wiring
Applications
- Ponds
- Swimming ponds
- Swimming pools
- Water basins
- Storage tanks
- Rainwater reservoirs
- Technical water installations
Please note: For some products in our web shop, basic knowledge of electrical engineering is required.
