Product description

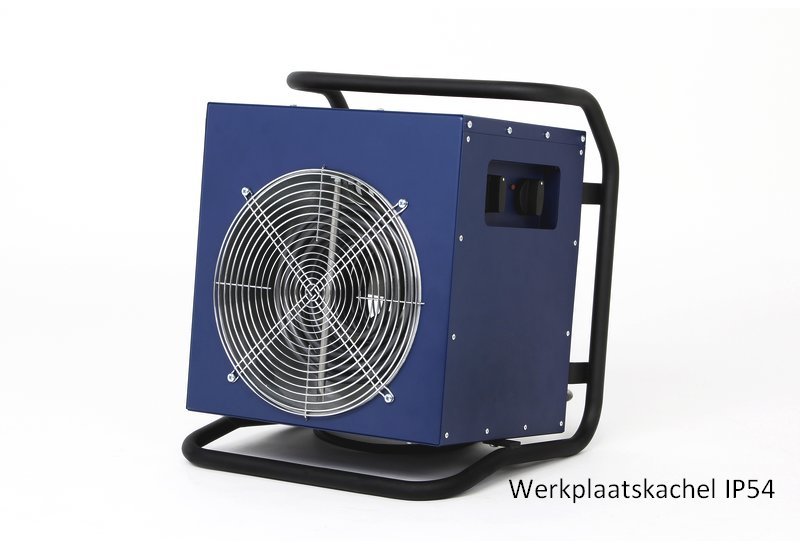

The workshop heater has a powerful fan for optimal distribution of the heated air in large spaces. Applications include: workshop, garage, factory hall, construction site, stable, storage shed or barn. These heaters are splash-proof and corrosion-resistant and specially designed for intensive use in harsh conditions.
Applications
Hidden control buttons
Operation of the workshop heater is done with a convenient 5-position switch:
- Device is turned off
- Fan is running (no heating)
- Fan and heater at 50%
- Fan 100% and heater 50%
- Fan + heater at full power
Temperature control and security
A built-in thermostat measures the temperature in the room and ensures that the heater does not consume more energy than necessary. The thermostat has a rotary knob for a range of 0 to 40 °C and an automatic reset. Additionally, the workshop heater is protected by a limiter (separate maximum thermostat), which automatically switches off the heating elements at a high temperature.
Either on the floor or attached to the wall
The fan heaters are easy to move thanks to their relatively low weight, and with the handy tube frame you can easily place them on the floor. For fixed installation against a wall, an optional mounting bracket is available. For permanent installation against a wall, a mounting bracket is available. These units are maintenance-free and easy to use. In dusty environments, periodic cleaning with compressed air is sufficient for reliable operation and long life. This series of workshop heaters is available in 2 sizes. The small ones, 2 to 9 kW, are suitable for 230 and 3x 400 Volt connections, and the large version for 3 x 400 V goes from 12 to 24 kW. The single-phase fan heaters are equipped with a power cord with plug. The 3-phase versions have no plug and must be connected directly to the mains by an electrician: the heaters up to 9 kW have a connection cable with 4x 1.5 mm² wires, and the heavier version has 4 x 4 mm² wires.
Electric workshop heaters 230 V – 1 phase
- 2,000 watts – 39 x 47 x 35 cm
- 3,000 watts – 39 x 47 x 35 cm
Electric workshop heaters 3 x 400 V
- 3,000 watts – 39 x 47 x 35 cm
- 6,000 watts – 39 x 47 x 35 cm
- 9,000 watts – 39 x 47 x 35 cm
- 12,000 Watt – 43 x 51 x 45 cm
- 15,000 watts – 43 x 51 x 45 cm
- 18,000 watts – 43 x 51 x 45 cm
- 21,000 watts – 43 x 51 x 45 cm
- 24,000 watts – 43 x 51 x 45 cm
*Note: upon purchasing some products on our webshop, a basic knowledge of electrical engineering is required (for installation).
