With our electric underfloor heating kit, you choose a complete and reliable solution for comfortable, even and energy-efficient heating. This all-in-one package contains all the necessary materials to get straight to work with the installation of electric underfloor heating. Thanks to the loose heating wire system, you decide for yourself where the heating cable is placed, making the system flexibly applicable in virtually any room.
The kit is suitable for both new-build and renovation projects and ensures a pleasantly warm interior without visible radiators. All necessary installation materials are included, allowing you to install the underfloor heating quickly and easily. In addition, you receive a testing device with which you can check the resistance of the heating cable during and after installation before the screed is applied.
Applications
This electric underfloor heating is suitable for use under various floor finishes, including tiles, PVC, laminate, natural stone and poured floors. The system can be used as primary heating or as comfortable supplemental heating.
Thanks to its low build-up height, the system is particularly suitable for renovations, while it is also an excellent fit for new-build projects. Moreover, the underfloor heating can be easily combined with sustainable energy solutions such as solar panels and low-temperature heating systems.

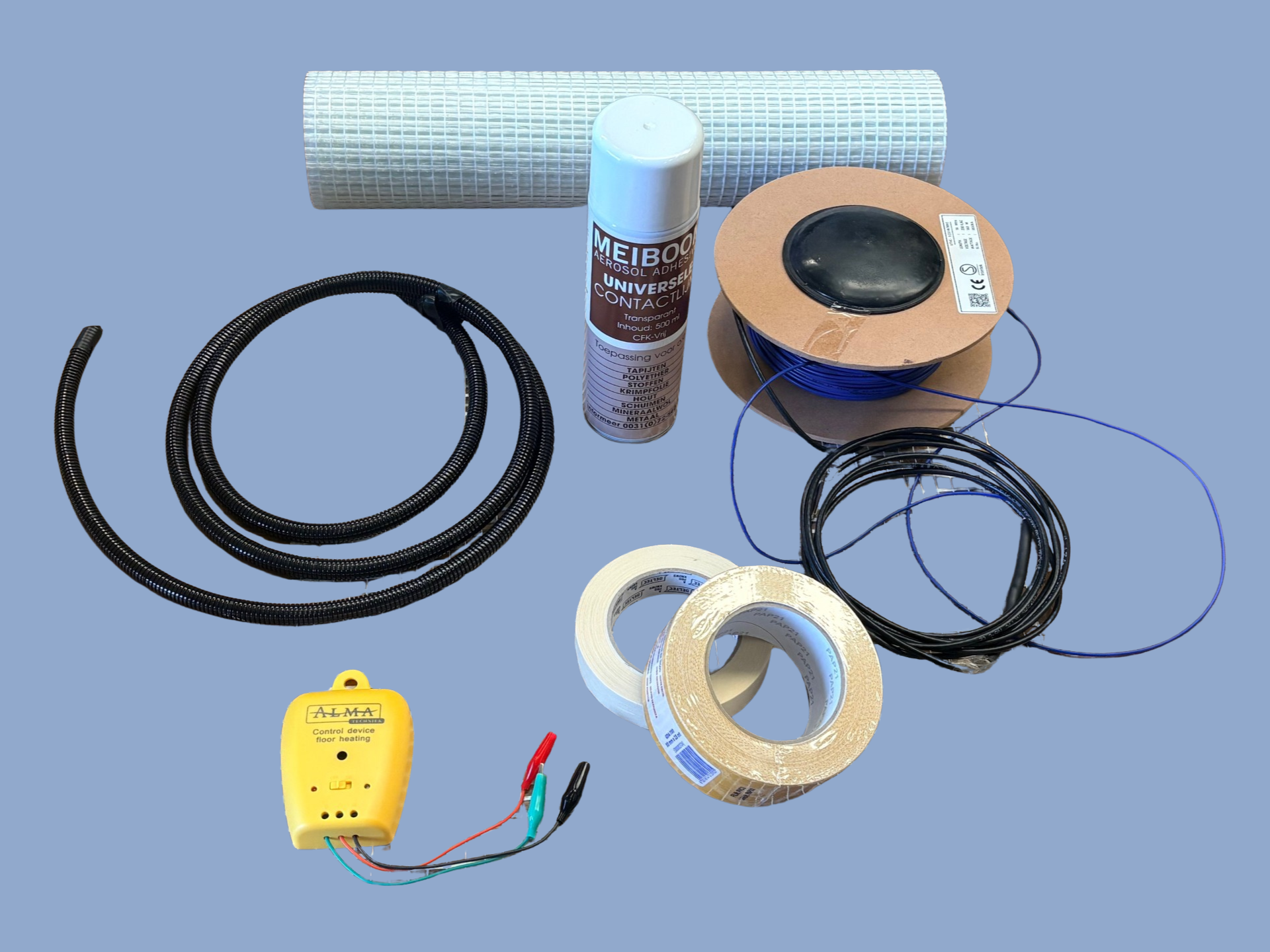

Contents of the parcel
The complete package comes with:
- High-quality electric heating cable only 2 mm thick
- Loose wire system for flexible installation
- Control box for measuring cable values during assembly
- 2.5-metre sensor tube
- Self-adhesive mat (depending on the chosen surface, including extra finishing material)
- Double-sided tape
- Masking tape
- Spray adhesive
- Comprehensive installation manual
Depending on the chosen surface, the system is supplied with:
- Up to 10 m²: 200 W/m² power
- From 10 m² to 20 m²: 150 W/m² output
Heating cable installation distance:
- 200 W/m²: centre-to-centre distance of approximately 5 cm
- 150 W/m²: centre-to-centre distance of approximately 7 cm
Why choose this underfloor heating kit?
With this complete electric underfloor heating kit you have all the materials for a professional installation. The combination of an extremely thin heating cable, simple assembly and even heat distribution makes this system an excellent choice for both domestic and commercial applications. The result is a comfortable, energy-efficient and virtually maintenance-free heating solution that will last for years.
Please note: Basic knowledge of electrical engineering is required for some products in our web shop
