Road heating 230V | SHTL 6mm | 30W/m
Road heating 230V | SHTL 6mm | 30W/m
0 Review | Add review
Road heating | For attaching to rebar/strip | 30W/m

Product number

VN200000

€ 123,00
excl. VAT
€ 148,83
incl. VAT
Quantity:
Order


Product description

Robust heat cable to attach to reinforcement mesh of new ramp. Working method: pour into concrete at 50...70 mm below road surface.

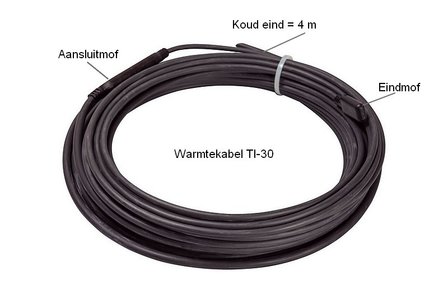

This heat cable has two insulated resistance elements, a braided earth screen and a hard plastic outer jacket. The cold connection end of 4 m may be extended or shortened. This road surface heating cable is available in many different lengths.

Applications

Surface area | Warm length | Power

  4.5 m² - 41 m - 1,230 Watt
  5.4 m² - 49 m - 1,470 Watt
  6.2 m² - 57 m - 1,710 Watt
  7.6 m² - 70 m - 2,100 Watt
  9.0 m² - 82 m - 2,460 Watt
10.7 m² - 98 m - 2,940 Watt
12.2 m² - 112 m - 3,360 Watt
13.6 m² - 125 m - 3,750 Watt
15.3 m² - 140 m - 4,200 Watt
17.5 m² - 160 m - 4,800 Watt

These surfaces apply at a heat output of 275 watts per m². The cable can be used for road surface and ramp heating with an output of 250...300 W/m².

The center-to-center distance during installation determines the effective heat output per square meter:

300 Watt/m² = 10 cm
275 Watt/m² = 11 cm
250 Watt/m² = 12 cm

Specifications

  • Connection voltage: 230 V
  • Power: 30 Watt/m
  • Connecting cable: 1x 4 m
  • Conductors: 3 x 2.5 mm²
  • Diameter: approx. 7 mm
  • Bending radius: >35 mm
  • Outer jacket: TPE
  • UV resistant: yes
  • Earth screen: yes
  • Inner insulation: teflon
  • Safety class: IP66
  • Temperature: <90 ºC
  • Standardization: IEC60800
  • Certification: CE
*Note: when purchasing some products on our webshop, a basic knowledge of electrical engineering is required (for installation).
