Product description

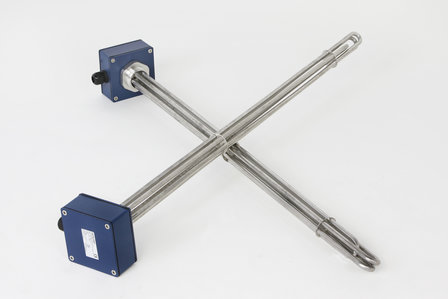

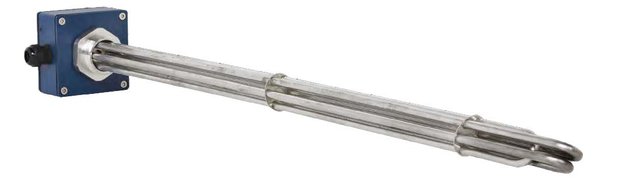

Screw-in water heater
Electric immersion heater for use in water. Supplied complete with control thermostat 0-40°C or 30-85°C, infinitely adjustable. Application in hot water supplies, frost protection, buffer vessels or electric boilers. Can also be used in a flow-through housing as a flow-through heater. This is a copper element suitable only for normal water. So not for polluted or aggressive water (such as swimming pool water). If you are interested in this application please contact us.
Applications
Water heater insert length
1 1/2'' - 2,25kW - 215mm - 1x230V
1 1/2'' - 3kW - 300mm - 1x230V
1 1/2'' - 4.5kW - 405mm - 3x400V
1 1/2'' - 6kW - 535mm - 3x400V
1 1/2'' - 7.5kW - 655mm - 3x400V
1 1/2'' - 9kW - 733mm - 3x400V
1 1/2'' - 10kW - 895mm - 3x400V
2'' - 2.25kW - 207mm - 1x230V
2'' - 3kW - 282mm - 1x230V
2'' - 4.5kW - 400mm - 1x230V
2'' - 6kW - 535mm - 3x400V
2'' - 7.5kW - 655mm - 1x230V
2'' - 9kW - 775mm - 3x400V
2'' - 10kW - 832mm - 3x400V
Specifications
- Power: 2.25kW...10kW
- Watt Load: 8W/cm2
- Gland size: 1 1/2'' - 2''
- Gland material: Brass
- Heating element: Closed tube element
- Material: Copper
- Thermostat: 0-40°C or 30-85°C
- Protection class: IP54
* Power cable is not included
** For 3x400V elements, the thermostat must be indirectly switched by a relay.
*Note: when purchasing some products on our webshop, a basic knowledge of electrical engineering is required (for installation).
