Product description

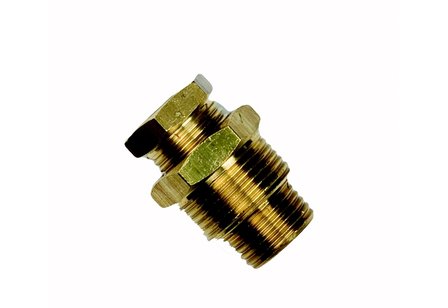

This nipple allows heat tape type FV-10 to be inserted inside a water pipe. Watertight lead-through with sealing ring. Universal design, for both 1/2“ (DN15) and 3/4” (DN20) threads.
Applications
Mounting instruction: Place a T-piece in the pipe to be protected and screw in the transit nipple. Then insert the heat tape and tighten the nut until the rubber seal is tight around the cable. The warm part of the cable must be inserted into the conduit in such a way that the connection sleeve and the connection cable remain on the outside.
Specifications
- Manufacturer: Ebeco
- Material: brass
- Implementation: 2 parts
- Diameter: R15 and 20
- Max. water pressure: 6 bar
NB: this grommet is only suitable for our Heating ribbon of 10 W/m.
*Please note that a basic knowledge of electrical engineering is required (for installation) when purchasing some products on our web shop.
