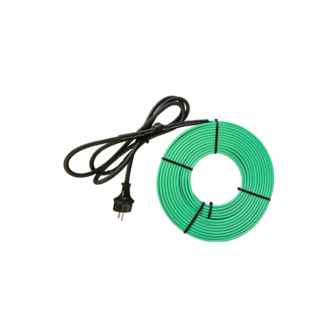

Frost-free cable | 11SRF Heating cable

Product description

Heating cables are mainly used for internal and surface heating of tanks and pipes such as sewer pipes, water pipes and water meters and taps. Where a flexible heating element is required. The cables are available in standard versions with the option of associated control technology. Plug & play is standard with this cable. Optional is an external thermostat/control or internal thermostat in the form of a built-in clixon that automatically switches the heating cable on at +5°C and off at +12°C. Electric heating cables are used in various applications for keeping frost-free, such as:

• (water) pipes
• Sewer pipes
• Water meters and taps
• (roots of) plants and trees
• Wells and well heads
• Water tanks and ponds
• (IBC) containers
• Gutters and rain pipes

We supply two types of heating cable.

Self-limiting heating tape without clixon

This type of heating tape has a semi-conductive self-limiting core that provides a varying resistance depending on the temperature. This means that the heating tape adjusts its power to the situation. At a higher temperature it gives off less power, and vice versa. This prevents the heating tape from overheating, even if it crosses itself. The parallel connection allows the heating tape to be cut at any point if necessary. This type of self-limiting cable can reach a maximum of 65°C and a power of up to 11W/m. The cable is always 'on' without regulation. You can control the heating cable with an external thermostat or regulation.

Self-limiting heating tape with clixon

This type of self-limiting cable has a semi-conductive self-limiting core that gives a varying resistance depending on the temperature. This means that the self-limiting cable adjusts its power to the situation. At a higher temperature it gives off less power, and vice versa. This prevents the thermal tape from overheating, even if it crosses itself. The parallel connection allows the thermal tape to be cut at any point if necessary. This type of thermal tape has a maximum temperature of 65°C and a power of up to 11W/m. This heating cable contains a clixon that is incorporated into the cable. In short, the cable is activated at +5°C and switched off at +12°C without external control. Please note: when placing the heating cable in or under water, the clixon does not work (optimally) and an external control may still be required.

Specifications

• Cable type: 11SRF
• Power (@10°C): 11W/m
• Temperature (on/off): Max. 65°C
• Dimensions: 8.3x5.7mm
• Outer sheath: Thermoplastic
• Voltage: 230V
• ATEX: No
• Standard frost-free ribbon type without clixon
• Width: 8.3mm
• Thickness: 5.7mm
• Insulation: Thermoplastic
• Internal regulation: No
• Voltage: 230 V
• Protection class: IP67
• Temperature range: Up to 65°C
• Standard frost-free ribbon type with clixon (thermostat)
• Width: 8.3mm
• Thickness: 5.7mm
• Insulation: Thermoplastic
• Internal regulation: Yes
• Voltage: 230 V
• Protection class: IP67
• Temperature range: Up to 65°C

Advantages, installation and accessories Frost-free ribbon:

Advantages Heat cable

• Quick installation (plug & play)
• Standard versions of 1 meter to 100 meters
• Temperatures up to max. 65°C
• Safety class: IP67
• With or without internal clixon control (clixon control does not work (optimally) in or under water)
• Standard with 1.5 meter connection cable and earthed plug

Mounting Heat cable

Mounting is easy to perform. For the sake of certainty, we have drawn up installation instructions, which are included when ordering the frost-free cable. For the sake of completeness, these instructions are included as standard in various languages. You can find these printed out in the delivery box. We supply complete systems, including all necessary accessories:

• Plug-in thermostats: TC-200, TC-300, TC-500 & FVC
• Plug-in controls: TS-125 & TS-1000
• Digital controls: TDR2004, HTS-1000, TSM-1000 & EB-800
• Digital controls IP65: HGI-HDT
• Analog controls IP65: UTR-60 & MVT
• Finishing sets: closing set & repair set
• Mounting material: aluminium tape & glue
• Feed-through sets: Y-piece & feed-through nipple

Ask our employees about the various accessories, controls and thermostats for this frost-free cable
*Please note: when purchasing some products from our webshop, a basic knowledge of electrical engineering is required (for installation).
