Product description
The floor thermostat is a stylish and modern control for underfloor heating. It has a color display and many possibilities thanks to individually adjustable programs. Perfect for those who expect the best energy efficiency and want to be able to adjust the heating to their own needs. The floor thermostat has various programs and functions that ensure it is nice and warm when you need it.
Applications
Suitable for virtually all floor sensors
The floor thermostat is easy to install. The shallow mounting depth means that the cable fits inside the box without a problem. There is a clear startup guide to make programming easy. The floor thermostat is ideal for renovation purposes because it is compatible with almost all floor sensors, including those from other manufacturers. In many situations, the old sensor can remain in the floor and you only need to replace the thermostat. The thermostat has a built-in timer function that indicates when the floor heating may be started, after curing.
Adjustable sensor values
NTC 2 kΩ
NTC 10 kΩ (preset)
NTC 12 kΩ
NTC 15 kΩ
NTC 22 kΩ
NTC 33 kΩ
NTC 47 kΩ
NTC 100 kΩ
Clear and easy navigation
With easy-to-navigate and intuitive menus with clear icons for the various functions, the floor thermostat makes it easy for both the installer and the end user. The 1.8-inch color display is bright and the capacitive touch zones are outside the display area to make the various functions more transparent and user-friendly.
Optimal energy saving
The various programs are adjustable and times and temperatures can be set individually. This makes the thermostat versatile and adaptable to many different environments and conditions.
RESIDENCE preset at 22 °C. Reduction of 5 °C Mon-Fri at 08:00-15:00, Mon-Sun at 23:00-06:00. Time and temperature can be adjusted.
OFFICE preset at 22 °C. Reduction of 5 °C at all times except Mon-Fri 08: 00-17: 00. Time and temperature can be adjusted.
TIMER Using the timer function, you can control the heat in rooms and facilities that are used less frequently. The heater turns on only when needed and stays on for the set time. After that, the heater goes into standby mode, for example maintenance heating and frost protection.
REMOTE CONTROL This program allows you to switch the temperature between two preset values. This is done using, for example, a switch, an SMS modem or a wi-fi device. Suitable when the heating is on in a summer house, mountain cabin, barn or where you want to control the heating from a central location. It is also possible to set post-heating if you want to slow down the temperature drop.

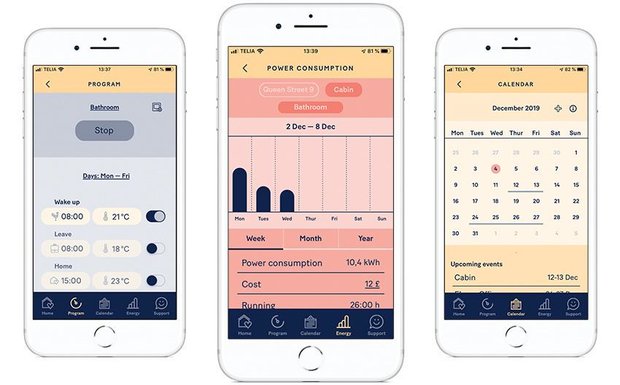

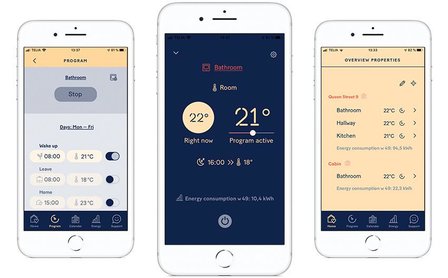

Easy operation via app and insight into energy consumption
The floor thermostat Wi-Fi is easy to control with the Ebeco Connect app. Because EB-500 has an open API, it is also possible to make the system part of your smart home. EB-500 makes it easy to keep track of your energy consumption. The thermostat clearly displays energy consumption per year, month or day.
Details
Sensor cable may be extended up to 50 m.
Specifications
- Manufacturer: Ebeco
- Model: EB-400
- Display: 36 x 29 mm
- Color: neutral white
- Dimensions: 87x87x39 mm
- Connection voltage: 230 V
- Max. connected load: 3,680 W
- Relay with switching contact: 16 A
- Installation depth: .... mm
- Safety class: IP21
- Approvals: CE
- Control range: +5...35 °C
- Room sensor: yes
- Floor sensor: 3 m
- Hotel program: yes
- Timer function: yes
- Manual: ....
Delivery includes floor sensor and fronts for Schneider Exxact and ELKO Plus/RS.
*Note: basic electrical engineering knowledge is required (for installation) when purchasing some products on our webshop.
