Product description

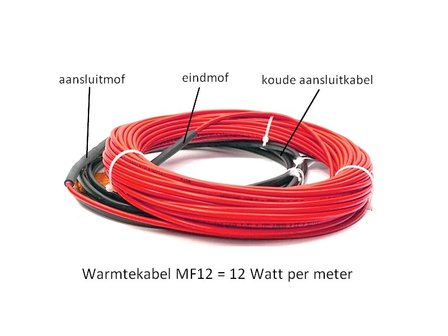

Heating cable MF12
Thin, flexible heating cable with a strong plastic outer sheath. This 230V heating cable is equipped with waterproof sleeves and a flat connection cable on one side, which is only 4 mm thick. Applications: underfloor heating in cement and finished floors. Also suitable for outdoor use and wet applications, such as plant beds.
Avoid overheating and maintain a minimum loop distance of 5 cm between warm cable parts during installation. The heat output is approx. 12 Watts per metre of cable length. A temperature control (thermostat) is always required for this type of cable. See below under Related Products.
Applications
Load capacity up to 20 Watts/m
In principle, a temperature control is always required for this cable. This heating cable can withstand up to 20 Watts per metre, provided that it can dissipate its heat properly. Shortening to a maximum of 60% of the original length is technically possible, taking into account the safety with regard to the new insulation to be applied.
Specifications
- Connection voltage: 230 V
- Power: approx. 12 W/m
- Diameter: 3.8...5.1 mm
- Couplings: < 8 mm Ø
- Bending radius: > 30 mm
- Cold end: approx. 3 m
- Connection: 3x 1 mm²
- Max. temperature: 90 °C
- Outer sheath: TPE
- Inner insulation: Teflon
- Earth shield: copper
- UV resistant: yes
- Safety class: IP68
- Waterproof couplings: yes
- Certification: CE, VDE
*Please note: when purchasing some products from our webshop, a basic knowledge of electrical engineering is required (for installation).
