Product description

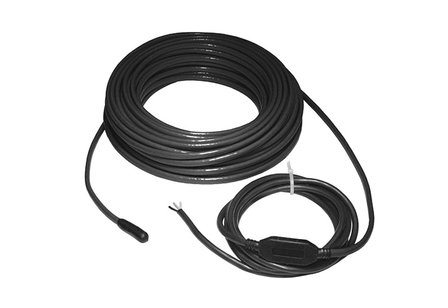

Heating cable SMC 30
Extra strong heating cable that can withstand a knock. Hard plastic outer sheath in UV and weather-resistant design. The heating cable is equipped with waterproof sleeves and a 3-metre long connection end on one side that does not get hot.
The heat output is 30 Watt per metre of cable length. This heating cable is resistant to high temperatures, up to +90 °C in continuous operation. A temperature control (thermostat) is always required for this type of cable.
Applications
road surface heating, driveway heating, entrance heating, ramp heating, industrial applications, etc. Beware of overheating: 1) cable must always be in concrete or other mass, 2) maintain a minimum loop distance of 7 cm between hot cable parts everywhere.
Specifications
- Connection voltage: 230 V
- Power: 30 Watt/m
- Loop distance: > 7 cm
- Diameter: approx. 6.5 mm
- Couplings: 10 mm thick
- Bending radius: > 35 mm
- Cold end: approx. 3 m
- Connection: 3x 2.5 mm²
- Outer sheath: PVC
- Inner insulation: XLPE
- Shielding: copper
- Cable UV resistant: yes
- Waterproof sleeves: yes
- Safety class: IP67
- Standard: IEC60800
- Certification: CE, EAC, UKCA
*Please note: when purchasing some products from our webshop, a basic knowledge of electrical engineering is required (for installation).
