Verwarmingskabel SMC - 20W

Product description

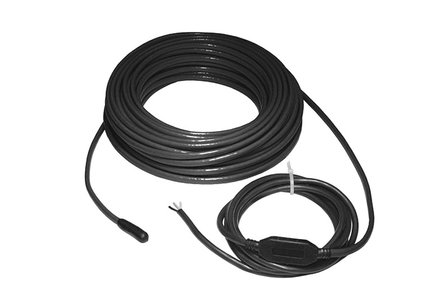

Extra strong heating cable that can withstand a knock. Plastic outer sheath in UV and weather-resistant design. This heating cable is equipped with waterproof sleeves. It has a 3-metre long connection end on one side that does not get hot. The heat output is 20 Watt per metre of cable length. This heating cable delivers a fixed output and can withstand a temperature of +70 °C in continuous operation. A temperature control (thermostat) is always required for this type of cable.

Applications

Applications: underfloor heating in cement or concrete, heating metal surfaces, tree heating, snow-free roofs, gutter heating, plant beds, etc. Beware of overheating: use a minimum loop distance of 7 cm between warm cable parts everywhere.

Specifications

• Connection voltage: 230 V
• Power: 20 Watt/m
• Loop distance: > 7 cm
• Diameter: 6 mm
• Couplings: < Ø10 mm
• Bending radius: > 35 mm
• Cold end: approx. 3 m
• Connection: 3x 0.75 mm²
• Inner insulation - outer sheath: XLPE . PVC
• Earth shielding: yes
• Cable UV resistant: yes
• Waterproof sleeves: yes
• Safety class: IP67
• Certification: CE, EAC, UKCA

*Please note: when purchasing some products from our webshop, a basic knowledge of electrical engineering is required (for installation).
