Product description

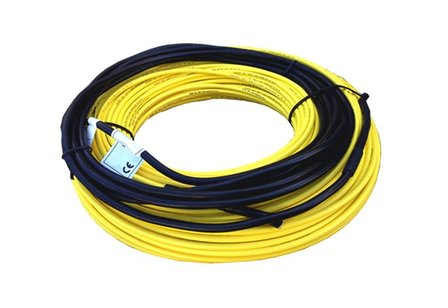

Thin, flexible heating cable with a strong plastic outer jacket. This 230V heating cable is equipped with waterproof sleeves and on one side a flat connecting cable, which is only 4 mm thick. Applications: floor heating in bathroom, kitchen. Also suitable for plant beds, billiard tables and other special applications. Beware of overheating: maintain at least 5 cm loop distance between hot cable parts everywhere. The heat output is approximately 10 watts per meter of cable length. A temperature controller (thermostat) is always required for this type of cable. See below at Related Products.
Applications
Up to 18 Watt/m
This heating cable is loadable up to 18 Watts per meter, provided it can dissipate its heat properly. Reducing the length up to 50% of the original length is technically possible, taking into account the safety of the new insulation.
Specifications
- Connection voltage: 230 V
- Power: approx. 10 W/m
- Diameter: 3...4 mm
- Sleeves: < 6 mm Ø
- Bend radius: > 35 mm
- Cold end: approx. 2.5 m
- Connection: 3x 1 mm²
- Outer jacket: TPE
- Inner insulation: teflon
- Earth screen: copper
- UV resistant: no
- Safety class: IPX7
- Waterproof sleeves: yes
- Certification: CE, VDE
*Please note: when purchasing some products on our webshop, a basic knowledge of electrical engineering is required (for installation).
