Heating wire 230 Volt | SIL-230
Heating wire 230 Volt | SIL-230
1 Review | Add review
No transformer required | 3 mm thick

Product number

VN20006

Default delivery time

1 werkdag (voor 09.30u besteld)

€ 20,85
excl. VAT
€ 25,23
incl. VAT
Quantity:
Order


Product description

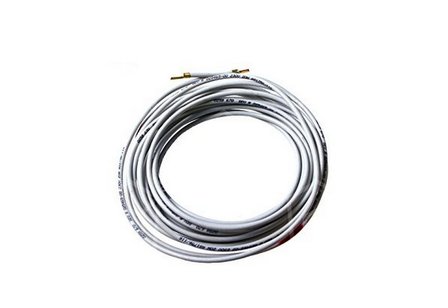

Flexible thin heating wire in lengths of 1 to 6 meters. Forms one whole with two permanently integrated connection wires. Including the heat-resistant silicone insulation only 3 millimeters in diameter!

This heating wire is intended for special applications in the field of (floor) heating, agriculture and cultivation (plant box), condensation control (windows, doors), preventing frozen freezer doors and frost protection.

Self-regulating Heating Tape is better suited for keeping pipes frost-free.

Applications

Heating wire - 10 or 30 Watt/m

This heating wire is available in 10 Watt or 30 Watt per meter.

Please note: the 30 W/m wire can become very hot! Make sure that it can transfer its heat well, e.g. by mounting it on a metal surface (with aluminum tape) or in a metal profile/strip.

  • 1 m = 10W/m = 10 Watt (230V)
  • 1 m = 30W/m = 30 Watt (230V)
  • 2 m = 10W/m = 20 Watt (230V)
  • 2 m = 30W/m = 60 Watt (230V)
  • 3 m = 10W/m = 30 Watt (230V)
  • 3 m = 30W/m = 90 Watt (230V)
  • 4 m = 10W/m = 40 Watt (230V)
  • 4 m = 30W/m = 120 Watt (230V)
  • 5 m = 10W/m = 50 Watt (230V)
  • 5 m = 30W/m = 150 Watt (230V)
  • 6 m = 10W/m = 60 Watts (230V)
  • 6 m = 30W/m = 180 Watt (230V)
  • 7 m = 10W/m = 70 Watt (230V)
  • 7 m = 30W/m = 210 Watt (230V)
  • 8 m = 10W/m = 80 Watt (230V)
  • 8 m = 30W/m = 240 Watt (230V)
  • 9 m = 10W/m = 90 Watt (230V)
  • 9 m = 30W/m = 270 Watt (230V)
  • 10 m = 10W/m = 100 Watt (230V)
  • 10 m = 30W/m = 300 Watt (230V)

These lengths all concern the hot part of the wire. Including the two (cold) connection ends, the total wire is 2 m longer.
Please note: this type of heating wire may not be shortened! This means lower resistance, which will result in burning out.
The heating wire forms a single unit (without sleeves) with the 1 m connection wires at each end. These cold ends may be extended (if necessary).

Specifications

  • Supply voltage: 230 Volt
  • Power: 10 or 30 W per m
  • Heating wire: Ø 3 mm
  • Insulation: silicone, 2 layers
  • Heat resistant: up to 200 ºC
  • Cold connection wires: 2x 1 m
  • Design: no sleeves
  • Safety class: IPX6
  • Quality mark: CE

*Please note: when purchasing some products from our webshop, a basic knowledge of electrical engineering is required (for installation).
