Tracing ribbon roll | 89-604-60 | 300mtr
0 Review | Add review
Tracing ribbon 10 W/m | Roll of 300 m for large consumers | Low weight and safe in drinking water

Product number

VN1010012

Default delivery time

1 working day (ordered before 09.30u)

€ 2.040,00
excl. VAT
€ 2.468,40
incl. VAT
Quantity:
Order


Product description

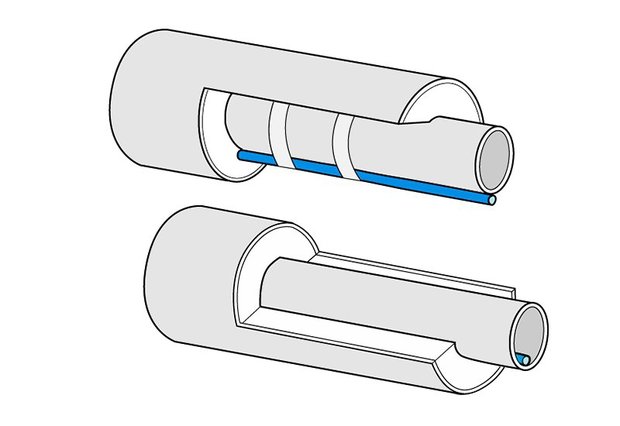

Tracing tape on a roll, especially for the installer. This tracing tape is suitable for keeping water pipes, sprinkler systems, etc. frost-free. Can be used on/along or inside (see image) a pipe.

Applications

Safe for use in drinking water. Suitable for metal and plastic, such as polyethylene pipe.* Example: a pipe of Ø32 mm + this tracing + 20 mm insulation = frost-free to -20 ºC.

* When using on plastic pipes, first apply aluminium tape for the best heat conduction

Specifications

  • Connection voltage: 230 V
  • Nominal power: 10 W/m
  • Ribbon diameter: 7.0 x 4.6 mm
  • Bending radius: >25 mm
  • Cable type: Ebeco F-10

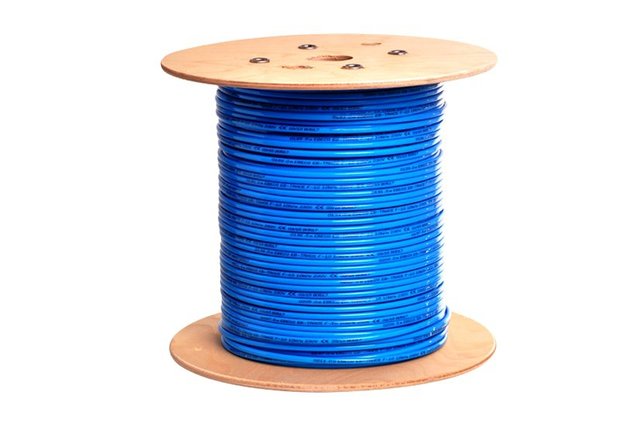

  • Supplied per roll: 300 m
  • Roll/ diameter: 40 cm
  • Roll/ height: 36 cm
  • Roll/ weight: 20 kg
  • Delivery time: 3...6 working days

NB: This tracing tape comes with a special adhesive kit with mounting material.
*Please note that a basic knowledge of electrical engineering is required (for installation) when purchasing some products on our web shop.
