Product description

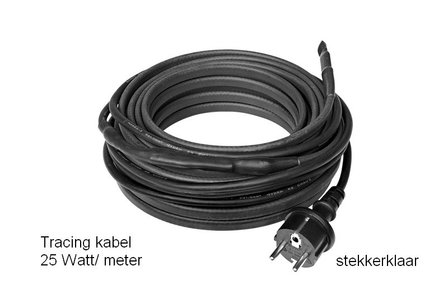

Robust tracing cable for frost protection. Prevents freezing of downspout, gutter, sump, drain, etc. The tracing cable is self-regulating and therefore can never get too hot.
This tracing is ideal for outdoor applications. Waterproof finished in 7 pre-fab standard lengths. Plug ready and fuse protected.
Applications
Powerful tracing of 25 Watt/m
The tracing cable has an oval cross section of 11x6 mm. It is factory waterproof terminated, including 4 meters of sturdy rubber power cord. This cold end may be shortened or extended.
Tracing cable via a thermostat
For a permanent installation, you can cut the plug and connect the mains cable to a Frost thermostat that provides automatic on and off.
For temporary applications, such as protecting motors or cooling systems, a
Frost switch is more practical.
Specifications
- Heat capacity: 25 W/m
- Connection voltage: 230 V
- Feature: waterproof
- Type: self-regulating tracing
- Cable diameter: 11x6 mm
- Bend radius: >35 mm
- Connection cable: H07RN-F
- Connecting cable: approx. 4 m long
- Plug: earthed + pin-earth
- Safety class: IP54
- Manual: EN + NL
- Hallmarks: CE, VDE
*Note: when purchasing some products on our webshop, a basic knowledge of electrical engineering is required (for installation).
