Product description

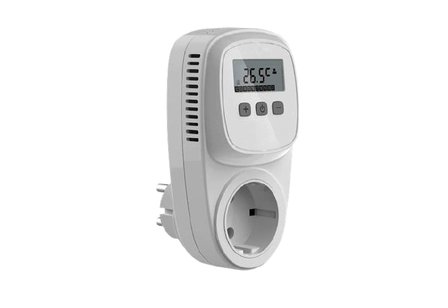

With this thermostat between a heating cable and the socket, it switches on automatically when the measured temperature is lower than the set value. In general, a switch-on temperature of +3...+5 °C is required to protect pipes against freezing. (At higher temperatures, the heating tape will therefore not consume any power) The display of the socket thermostat shows the temperature you have set yourself. As soon as it gets colder in the room, mains voltage will be applied to the output. The plugged-in heating tape or heating wire is then activated and starts heating. At that moment, the current (measured) temperature appears on the screen.
You can only use this socket thermostat if the heating cable (or another form of electric heating) is in a dry room. For example, useful for keeping the water pipes in the garage frost-free, with a minimum of power consumption without the risk of forgetting to plug it in on time. Other applications: switching on additional heating, such as a radiant heater, in a caravan, boat or other unheated room. Tip: the operation is very simple and by experimenting with a table lamp you will quickly understand how it works! Please note: this thermostat is not suitable for a damp room, such as a stable. Choose a
Frost switch for this.
Applications
WiFi option
The TC500 Wifi can be used as a thermostat or pump switch. This plug-in thermostat is suitable for electric heating and/or cooling. The TC500 Wifi can also be linked to a mobile app. Key features:
- Heating and cooling function
- Internal and external sensor
- 16a switching capacity
- Plug type earthed
- Thermostat can be easily operated via the app for ANDROID and IOS
- Can be linked with IFTTT, Google Assistant, SIRI and Alexa
- Easy to connect with the TuyaSmart app
Specifications
- Connection voltage: 230 V
- Switch contact: max. 16 A
- Switching capacity: 3600 W
- Sensor cable: approx. 2 m
- Setting range: 0...+65 °C
- Reading resolution: 0.1 °C
- Setting: with + and - button
- Memory function: yes
- Hysteresis: +/- 0.5 °C
- Dimensions: 140x70x42 mm
- Colour: off-white
- Safety class: IP20
- Earthing: earthed or pin
- Quality mark: CE
*Please note: when purchasing some products in our webshop, a basic knowledge of Electrical engineering required (for installation).
