Product description

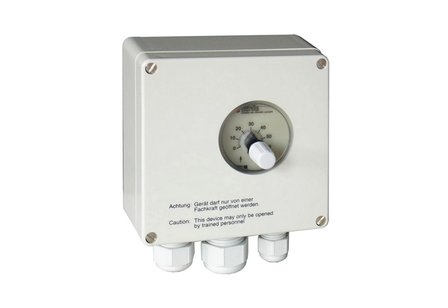

Electronic temperature control with external sensor, suitable for controlling heating cables for frost protection. You can connect multiple heating cables (connected in parallel) to this electronic control. Equipped with a rotary knob and 2 LED indicator lights.
Applications
The switching contact (of the relay) supplies the heating cables with 230 volts if the temperature measured by the sensor is below the set temperature. The robust plastic housing is suitable for wall mounting in the open air. The sensor's connection cable may be extended to a maximum of 100 metres with a normal signal cable of 2x 1.5 mm².
Specifications
- Manufacturer: Eberle (German)
- Dimensions: 122x120x56 mm
- Connection voltage: 230 Volt
- Connection power: 3,600 W
- Switching current: max. 16 A
- Switching contact: floating
- Own consumption: < 4 VA
- Control/setting range: 0...+60 °C
- Sensor option: 1.5 or 4.0 m
- Indicator lights: 2x LED
- Safety class: IP65
- Glands: 3x, included
- Manual: Dui+Eng
- Quality mark: CE
*Please note: when purchasing some products from our webshop, a basic knowledge of electrical engineering is required (for installation).
