Product description
Without sensor or with universal sensor 3m waterproof

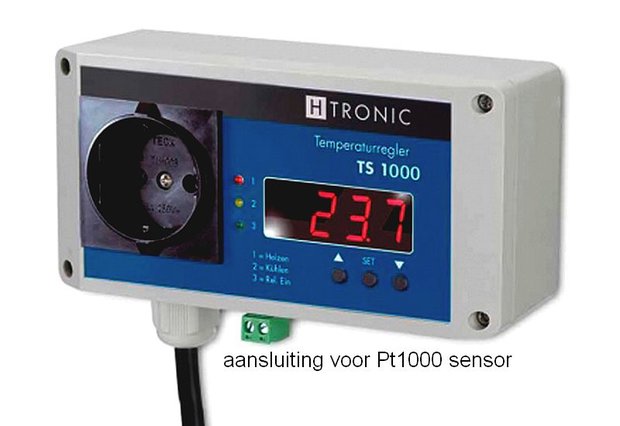

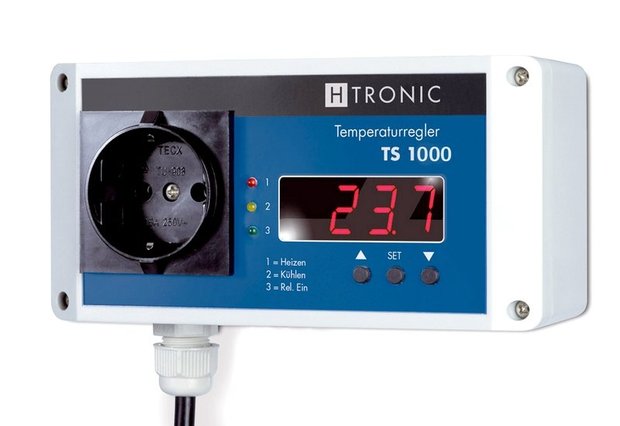

Automatic control for one or more heating cables or electrical devices. Attractive, compact housing, especially for wall mounting, equipped with power cord with earthed plug. [NB: this temperature controller is not suitable for outdoor use, but is suitable for cooling equipment].
Applications
Pt1000 sensors are available in various versions. You must order the sensor of your choice separately! Pt1000 type sensors work without power supply and are also accurate if you extend the 2-wire connection cable.
The switching temperature is adjustable in steps of one degree Celsius. The display temperature shows 1 digit after the decimal point. This temperature controller is very easy to operate. It can also be used as a thermometer and has a memory for the highest and lowest measured temperature.
The setting range of the temperature controller is large. This makes it suitable for frost protection but also for all kinds of applications with electric heating, including heating cables.
In the frost protection application, the connected device or heating tape will only receive mains voltage if the ambient temperature is lower than the switching temperature you have set yourself. A value of 3 to 5 °C is common. You can easily adjust this.
Wet applications with waterproof sensor

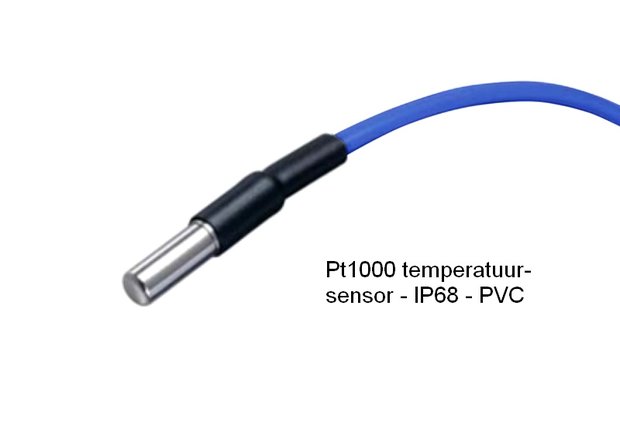

For controlling and reading the water temperature in a pond or swimming pool. Tip: order the waterproof IP68 sensor for this application, which is equipped with a 10 m connection cable.
Extending the sensor cable
The length of the sensor cable depends on the selected type. For pond heating, for example, it can be extended to a maximum of 50 metres, so that you can place the temperature controller indoors. Extending the 2-wire sensor cable is easy with a connection box.
Specifications
- Mounting: wall model/cabinet
- Ambient temperature: -15...+50 °C
- Output: 230 V (socket)
- Application: heating & cooling
- Switching current: max. 16 A
- Connected power: 3000 W
- Own consumption: approx. 2 Watt
- Display: LED 12.7 mm high
- Control range: -99...+850 °C
- Setting: in steps of 1 °C
- Accuracy: <0.5° FS ±0.1°C
- Display resolution: 0.1 °C
- Interface: TTL-UART (internal)
- Sensor input: screw connection
- Sensor cable error message: yes
- Dimensions: 180x80x60 mm
- Safety class: IP20
Please note: Some knowledge of electronics is required for this product.
