Product description

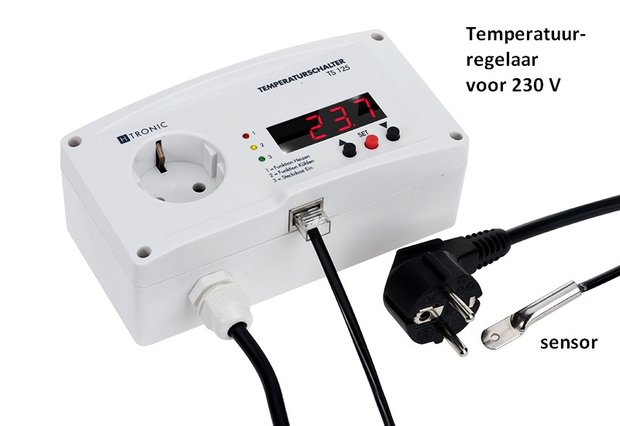

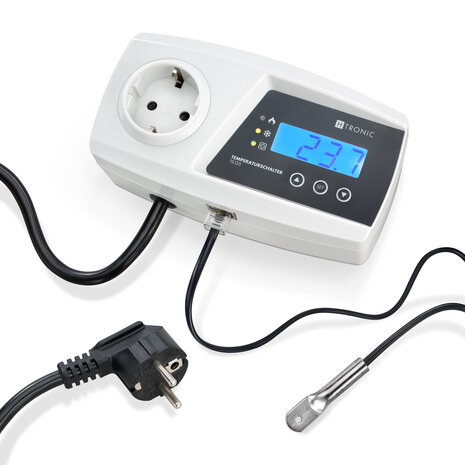

Temperature controller 3000 W
Automatic temperature control for one or more heat cables or electric heaters. Attractive, compact housing, especially for wall mounting, equipped with power cord with safety plug. [Note: this temperature controller is not suitable for outdoor use, it is suitable for cooling equipment].
You can set the switch-on and switch-off temperature (hysteresis) separately, with a resolution of 0.1 °C. Also the temperature on the display shows 1 decimal place.
This temperature controller is very easy to operate and has a memory for the highest and lowest temperature measured. The values in the memory remain intact if you temporarily disconnect the mains supply.
The setting range of the temperature controller is large, from -55 to +125 Celsius. Therefore it can be used for frost protection but also for all kinds of applications with electric heating, including heat cables.
Applications
In the frost protection application, the connected device or
heating ribbon will only receive mains power if the ambient temperature is lower than the switching temperature you set yourself. For this, a value of 3 to 5 °C is common, but you can adjust this very easily.

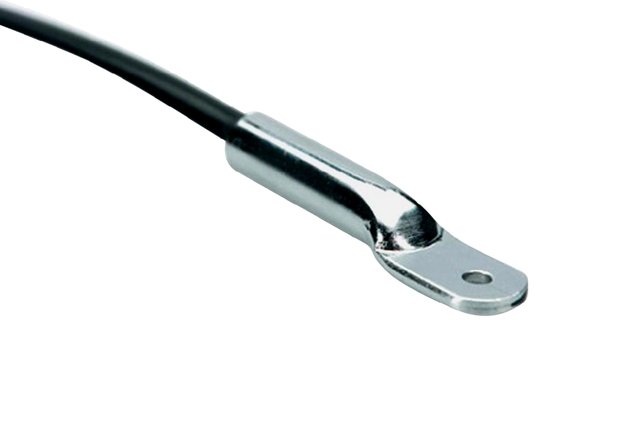

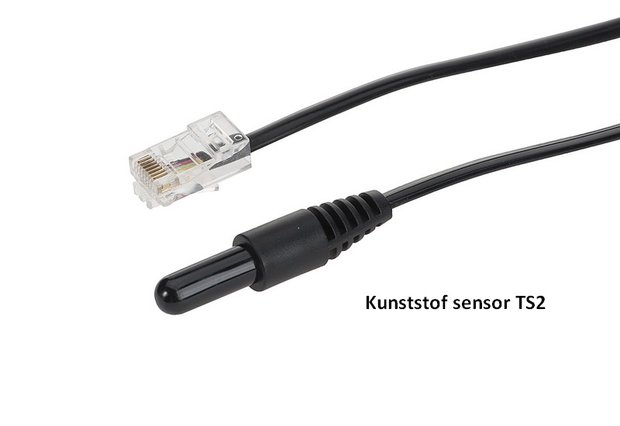

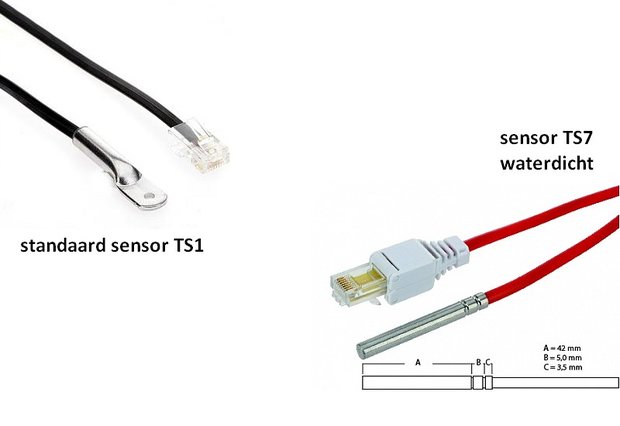

This temperature controller comes standard with a metal sensor. As an option, you can choose a waterproof sensor made of metal or plastic.
Heating for tropical fish
This digital controller is useful, among other things, for controlling the water temperature in a tank with tropical fish. You can connect the electric
heating cable (which is on the bottom of the tank) directly.
Extending the sensor cable
The sensor signal cable is 2 m long. For e.g. pond heating, it can be extended to max. 50 m, however, the temperature controller must be placed indoors.
Tip for extension: Cut the sensor cable and use 2 junction boxes to make the desired extension with 4-core signal cable.
Specifications
- Output: 230 V (wall socket)
- Mains cable: approx. 1.6 m long
- Switching current: max. 16 A
- Connected load: 3000 W
- Power consumption: approx. 2 W
- Display: LED 12.7 mm high
- Control range: -55...+125.0 °C
- Accuracy: +/-0.5° (-10...+85°C)
- Switching and reading resolution: 0.1 °C
- Sensor type: mooring/ metal
- Sensor input: RJ45
- Dimensions: 180x80x60 mm
- Safety class: IP20
- Manual: NL
*Please note that a basic knowledge of electrical engineering is required (for installation) when purchasing some products on our web shop.
