Time switch 3 phases | BS-317
0 Review | Add review
Time switch 380...415 Volt | 3-phase | For electric heating, outdoor lighting, etc.

Product number

VN11010461

€ 79,75
excl. VAT
€ 96,50
incl. VAT
Quantity:
Order


Product description

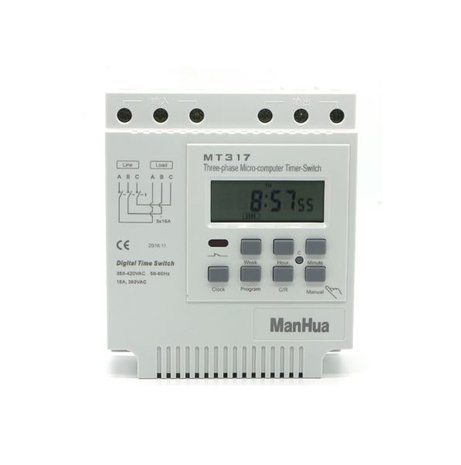

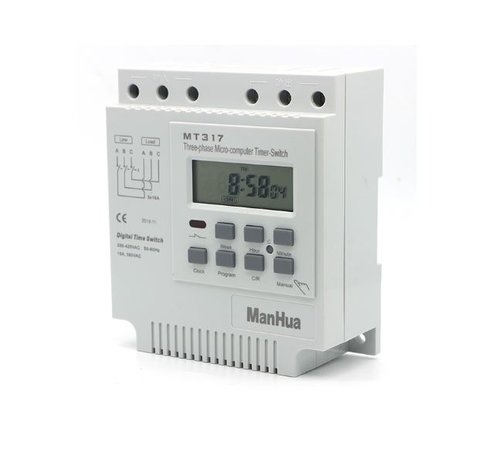

The programmable timer switches three power groups simultaneously. It is intended for installation on a DIN rail in a switch cabinet or against a wall, e.g. in the meter cupboard. Connection is easy: 3 wires in and 3 wires out. This digital timer contains a microcomputer that can switch 3 groups simultaneously. Setting and programming requires a little more patience.

Applications

The timer switch can, among other things, automatically switch on electric heating cables, for example a driveway heater that must automatically switch on for 45 minutes every morning during the winter. Other applications: switching on machines, fans, electric heating, neon lighting, etc.

Please note: You must set the times for each day of the week separately. The 3-phase timer is not suitable for installation in a damp room, such as a stable.

Specifications

  • Working voltage: 350...420 V
  • Mains frequency: 50...60 Hz
  • Switching contacts: 3 x 25A
  • Switching capacity: < 4000 W
  • Own consumption: < 5 VA
  • Temperature sensor: n.a.
  • Display: 46 x 16 mm
  • Working environment: -20...+50 ºC
  • Setting range: 1 min...168 hours
  • Minimum duration: 1 min
  • Number of setpoints per day: 16
  • Program: 7 weekdays
  • Frost protection function: no
  • Number of push buttons: 7
  • Memory function: yes
  • Installation: on 35 mm DIN rail
  • Dimensions: 121x105x52 mm
  • Weight: 425 g
  • Colour: off-white
  • Safety class: IP20
  • Manual: English only
  • Earth: n.a.
  • Certification mark: CE
  • NB: subject to change.

*Please note: when purchasing some products from our webshop, a basic knowledge of electrical engineering is required (for installation).
