Product description

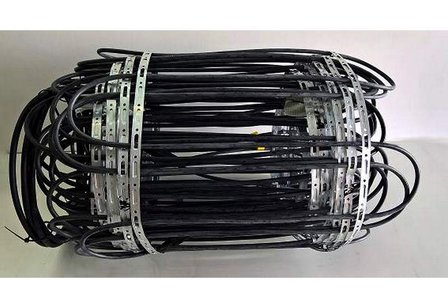

Travel track heating in the form of an electric heating mat. The robust heating cable is supplied with the metal strips, which you must attach yourself. Distance such that the power is 300 Watt per m².

Applications

This driving track heating can be installed in concrete (6...12 cm thick) and asphalt up to +180 °C. Alternative: under a cement layer (4...6 cm thick) on a concrete subfloor. Example: driveway of 15 m long and 2.25 cm wide. For this you need 3 mats (on 3 groups 230V/16A) and one automatic control for road surface heating.

Specifications

Connection voltage: 230 V
Cable capacity: 30 Watt/m
Heat output: 300 W/m²
Laying width: 75 cm
Loop distance: >7 cm
Diameter: approx. 7 mm
Couplings: 10 mm thick
Bending radius: >35 mm
Cold end: approx. 2.5 m
Connection: 3x 2.5 mm²
Outer sheath: TPE
Inner insulation: Teflon
Shielding: copper
Cable UV resistant: yes
Waterproof sleeves: yes
Safety class: IP67
Standard: IEC60800
Certification: CE

*Please note that a basic knowledge of electrical engineering is required (for installation) when purchasing some products on our web shop.
