Product description

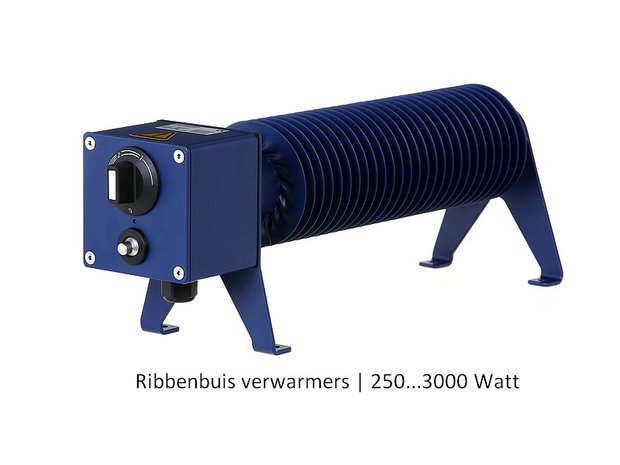

The electric finned tube heater has a robust heating element with steel ribs. Very compact design for professional applications. Maintenance-free and resistant to dirt and moisture.
Can be used for space heating and frost protection on ships, in industrial environments, utility buildings and all kinds of special applications (office container, petrol station, air handling unit, pump room, stairwell, lift shaft, machine room, technical room, closed storage container, industrial hall, crane house, conservatory, garage, laundry room, machine room, warehouse, etc.).
Applications
The finned tube heater is shockproof
This industrial finned tube heater distributes its heat by means of natural convection. This electric heater is intended for fixed, horizontal installation, usually on floors. There must be sufficient free space around the finned tube so that it can transfer its heat well and start air circulation. Please note that the element can become very hot.
Temperature continuously adjustable
The finned tube heater works anywhere where there is 230 Volt mains voltage. It is infinitely adjustable with a robust thermostat, which is equipped with a large rotary knob. Please note: the heater is intended for fixed installation and is supplied without a connection cable. Basic knowledge of electrical engineering is required for installation.

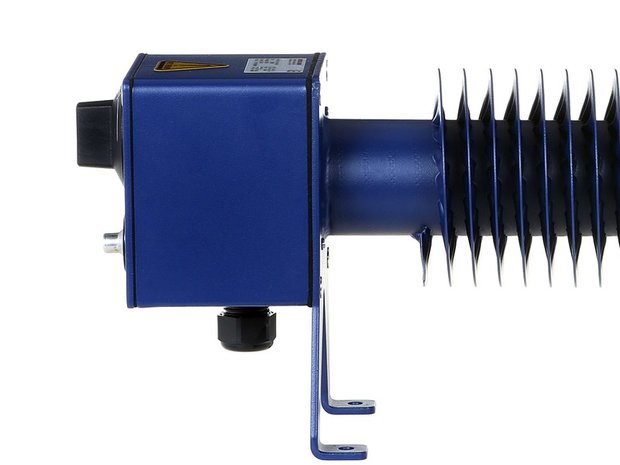

The square thermostat housing can be mounted in four positions. This is useful when the cable entry (which is normally located at the bottom) needs to be in a different place. The height and width are identical for all models. The length increases with the heat output (number of watts).
Ribbed tube heaters: total height 165 mm
- 250 Watt - length 335 mm, 2.5 kg
- 500 Watt - length 475 mm, 3.5 kg
- 1000 Watt - length 750 mm, 5.1 kg
- 1500 Watt - length 1000 mm, 6.6 kg
- 2000 Watt - length 1275 mm, 8.2 kg
- 2500 Watt - length 1550 mm, 9.0 kg
- 3000 Watt - length 1800 mm, 11.3 kg
Specifications
- Type: CB blue with thermostat
- Power: 250...3,000 Watt
- Connection voltage: 230 Volt
- Cord length: n.a.
- Material: corrosion-resistant steel
- Finish: powder-coated
- Colour: RAL 5003 (blue)
- Operation: silent
- Mounting: 4 'floor feet'
- Control thermostat: 0...40 °C
- Temperature sensor: yes
- Operation: rotary knob
- Height: 165 mm
- Foot width: 130 mm
- Safety class: IP54
- Ribbed housing: IP65
- Manufacturer: EU
- Manual: NL
- Quality mark: CE
*Please note: when purchasing some products from our webshop, a basic knowledge of electrical engineering is required (for installation).
