Product description

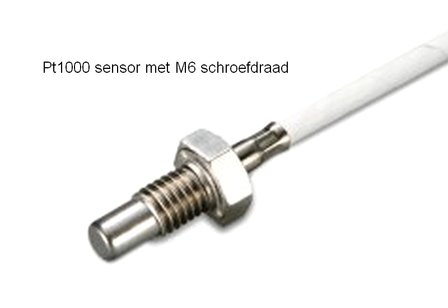

Sensor in metal housing with M6 thread, for measuring temperatures. Can be screwed into metal surface, or through metal plate or pipe wall and fasten with an M6 nut on the end. The signal cable may be extended up to 50 meters.
Applications
Connections: 2 red and 2 white wires + connection for ground shield. Note: in normal situations, you only need to connect 2 wires: 1x white and 1x red.
Specifications
- Type: Pt1000
- Implementation: stainless steel
- Screw thread: M6
- Sensor body: 35 mm
- Installation depth: 17 mm
- End diameter: Ø 4.5 mm
- Cable length: 1.0 m
- Shielding: steel jacket
- Safety class: IP54
- Material cable: PTFE
- Operating range: -190...+260 ºC
*Note: basic electrical engineering knowledge is required (for installation) when purchasing some products on our webshop.
