Product description

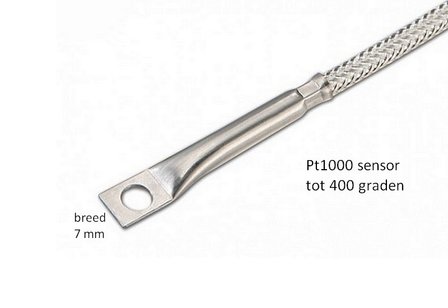

Sensor with metal connection cable for measuring flue gases or other temperatures up to 400 degrees Celsius. The flat end of the sensor has a mounting hole for installation in metal pipes and surfaces.
Applications
The heat-resistant 2-wire connection cable may be extended up to 50 meters.
Specifications
- Type: Pt1000-400C
- End: 7 mm / Ø4.5 mm
- Cable length: 2 m (2-wire)
- Outer sheath: braided steel
- Internal insulation: glass silk
- Version: Stainless steel (V4A)
- Working voltage: 0-10V
- Working range: -50...+400 ºC
- Class: IP54
*Please note: when purchasing some products from our webshop, a basic knowledge of electrical engineering is required (for installation).
