Product description

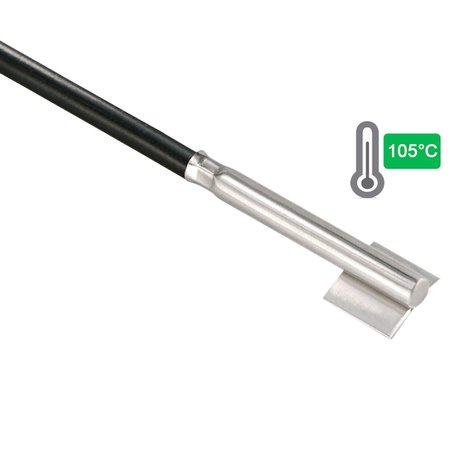

Sensor for measuring pipe temperatures up to 105 degrees Celsius. This sensor has a metal contact surface for optimum heat transfer.
Applications
This temperature sensor is intended for a pipe from Ø22 mm and is mounted with a hose clamp. If necessary, the contact plate can be bent open. The supplied hose clamp can also be used for thick pipes, up to Ø120 mm.
Tip: For a horizontal pipe, mount the sensor at the top. The 2-wire signal cable can be extended up to 50 meters.
Specifications
- Type: Pt1000-1627
- Temperature: -35...+105 ºC
- Execution class: IP65
- Sensor housing: metal

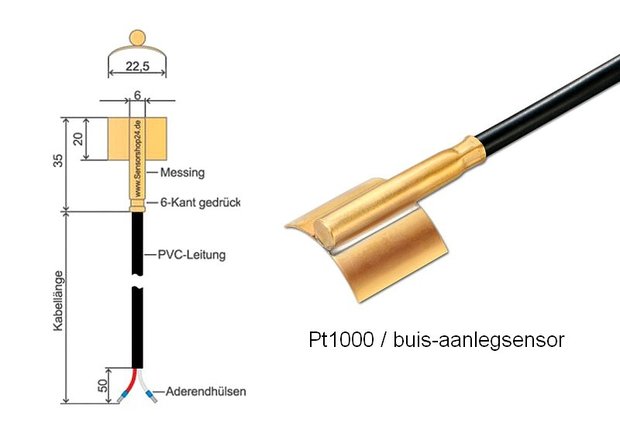

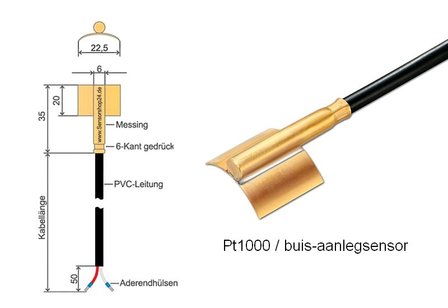

- Contact plate: 20x30 mm
- Cable: 2.0 m (2-wire)
- Cable material: PVC
*Please note: when purchasing some products from our webshop, a basic knowledge of electrical engineering is required (for installation).
