Product description

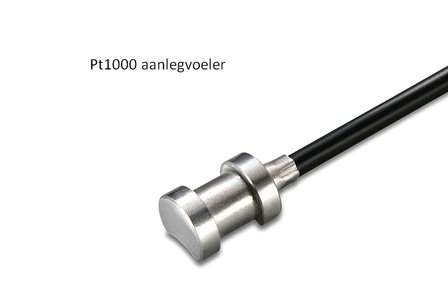

Sensor for measuring temperatures up to 105 degrees Celsius of pipes, tubes and pipes. The metal end has a notch for tight mounting and good thermal contact. This temperature sensor is intended for curved surfaces and is mounted with an adjustable metal clamp.
Applications
In the case of a horizontal pipe, mount the sensor at the top. The 2-wire signal cable may be extended up to 50 meters.
Specifications
- Type: Pt1000-105C
- Temperature: -35...+105 ºC
- Execution class: IP65
- Signal output: 4-20mA
- Sensor housing: aluminum
- Metal end: 30 mm
- Cable: 2.0 m (2-wire)
- Cable material: PVC
*Please note: when purchasing some products from our webshop, a basic knowledge of electrical engineering is required (for installation).
