Product description

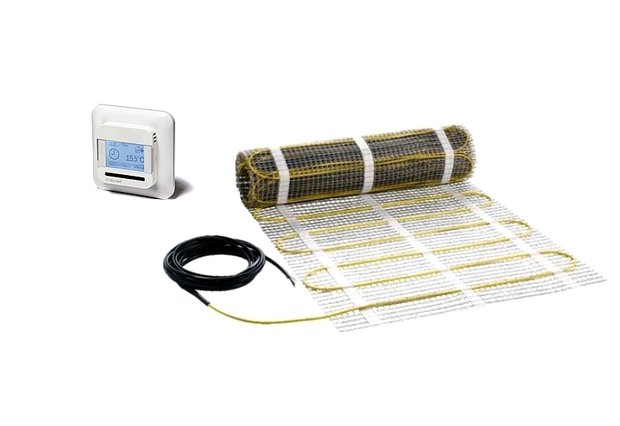

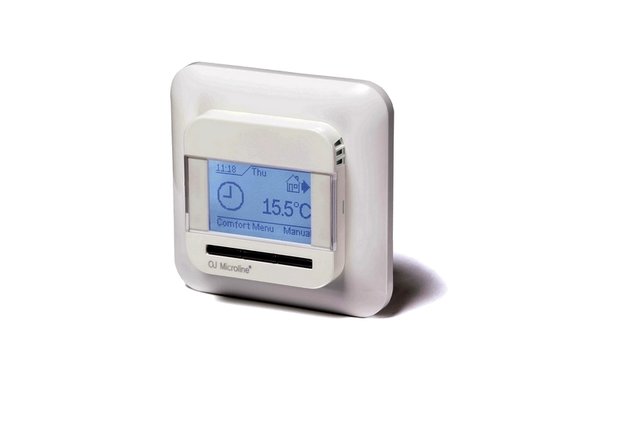

Thin mat for floor heating. Application in tile adhesive or level, under tile floor. The special dual core heating cable with earth screen prevents electromagnetic radiation. Complete with OCD built-in clock thermostat. The floor heating mat is 50 cm wide and available in various lengths, starting at 1 meter. Included is a modern OCD4 clock thermostat (recessed model) with floor sensor. (Specifications via the link above)
Applications

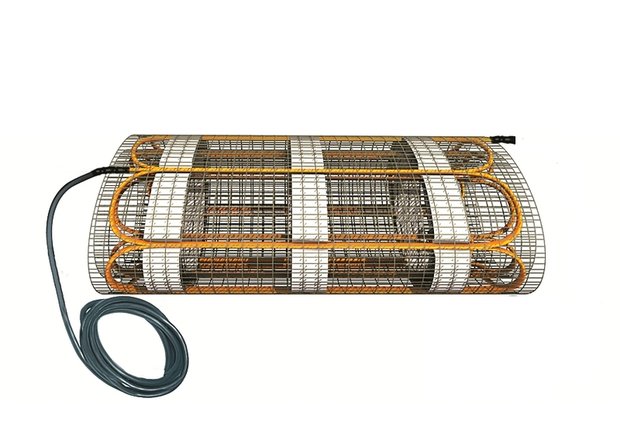

The heating cable is attached to the mesh of the mat, which has an adhesive coating on the underside. At the beginning of the mat is the connecting wire, containing the connection for phase, neutral and ground. All electrical connections are waterproof, making this heating mat safe for use in a bathroom floor.
Specifications
- Connection voltage: 230 Volt
- Power: 155 Watt/ m²
- Outer jacket: hard PVC
- Connection cable length: 3 m
- Protective earth connection: yes
- Installation height: <3.2 mm
- Back of mat: self-adhesive
- Hallmarks: VDE + CE
*Note: when purchasing some products on our webshop, a basic knowledge of electrical engineering is required (for installation).
