Product description

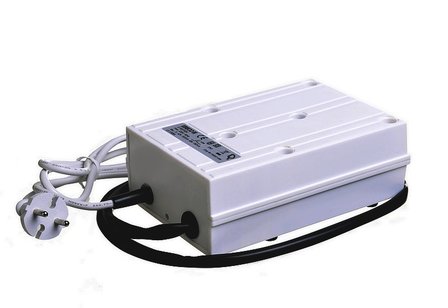

Transformer for low-voltage heating foil, for floor heating (foil) in a caravan or camper. Because the transformer is encapsulated in resin, there is no annoying humming.
The energy-efficient toroidal transformer operates at 230 volts mains voltage and has a power cord with molded plug. The device is double insulated so no (edge) earth is needed.
Applications
48 Volt AC voltage is available at the output, so no risk of swapping + and - wires. This transformer can also be used for other applications that require 48 Volt AC voltage.
The Ebeco transformer has a protection against overheating, replaceable fuse, power cord (over 1 meter) with plug and a solid connection cable with 2 connectors. The double insulated plastic case has rubber feet and is provided with holes to screw it, on a floor or wall.
Specifications
- Manufacturer: Ebeco AB
- Article number: E5207021
- Connection voltage: 230 Volt
- Power cord: 110 cm long
- Connected load: up to 250 watts
- Thermal protection: yes
- Fuse: 2.0 Ampere (slow blow)
- Output voltage: 48 Volt
- Connecting cable: 90 cm long
- Dimensions: 195x132x70 mm
- Fastening: 4x hole Ø 5mm
- Safety class: IP41
- Weight: 3,10 kg
- Hallmark: CE
*Please note that a basic knowledge of electrical engineering is required (for installation) when purchasing some products on our web shop.
