Product description

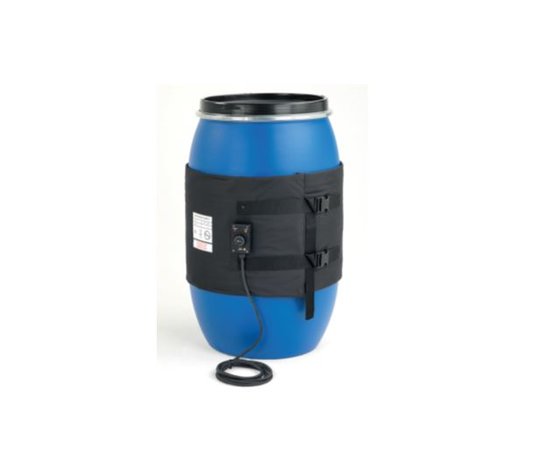

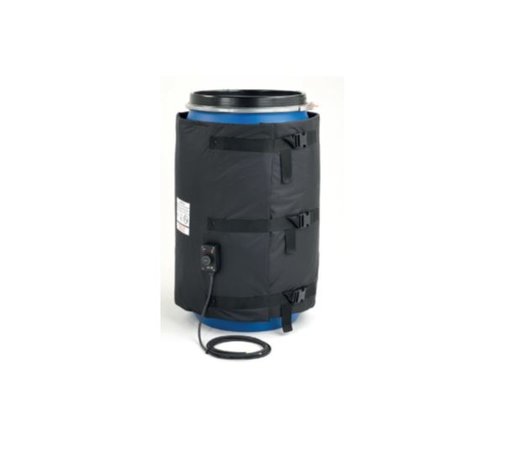

The barrel heater is an insulated heating blanket. A high quality silicone heating element is sewn into the insulated blanket. This heating element can heat up to 90°C. The barrel heater is specially designed for heating plastic storage drums, but can also be used on steel drums due to its versatile application. The barrel heater is available in all industry recognized barrel sizes.
Applications
The heating blanket is used for heating substances and reducing viscosity. This is done with substances such as fats, oils, resins and foodstuffs. It is also ideal for frost protection. The blanket is used in a wide variety of industries, yet mainly in the pharmaceutical and cosmetic industries.
Heating variants
25L - 400x1020 mm - 200W
50L - 460 x 1250 mm - 250W
105L - 370 x 1650 mm - 400W
200L - 450 x 1950 mm - 450W
200L - 800 x 1950 mm - 1200W
Specifications
- Specially designed for plastic drums
- Heats up gradually
- Class 2 double insulated
- Protection class IP40
- Adjustable quick release buckles for easy fitting
- 0-40°C or 0-90°C thermostat
- Standard sizes: 25L, 50L, 105L and 200/220L
- Material jacket: Fireproof polyester fabric
- Insulation: Fiberglass, type E
- Heating element: High temperature copper nickel resistance wire between two siicone fiberglass layers

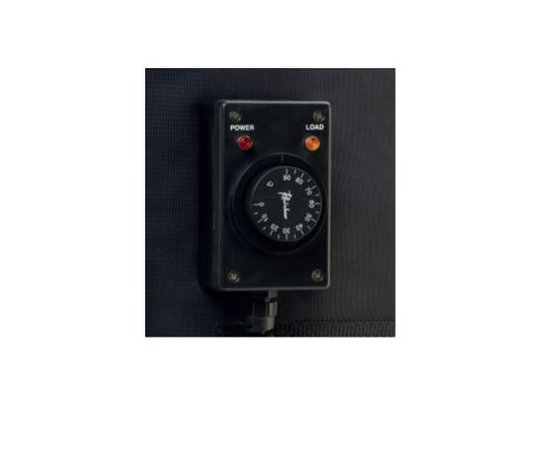

- Control: 0-40°C or 0-90°C adjustable thermostat
- Connection cable: 4 meters HO7RN-F

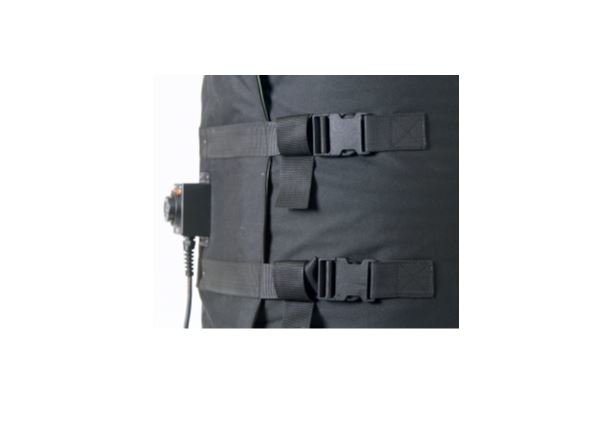

- Fastening: Polypropylene webbing with adjustable quick-release buckles
- Voltage: 230V
- Power: 200W - 1200W
*Note: when purchasing some products on our webshop, basic electrical knowledge is required (for installation).
