Product description

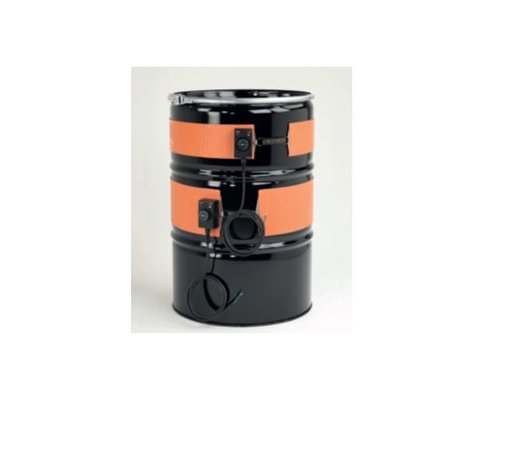

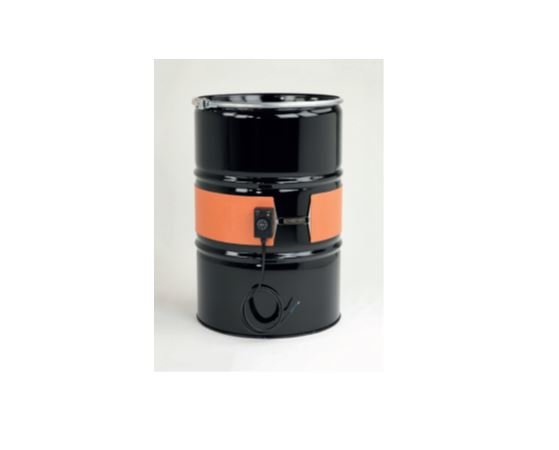

The barrel heating belt is an industrial silicone barrel heater for fast, aggressive and high power heating performance. The heating belt is a very efficient way of heating. Silicone is a perfect material for high power heating because it has low thermal mass and excellent thermal properties.
Features of the heating belt
- Aggressive heating applications
- Light weight and easy to secure with spring connectors
- Double insulated construction with silicone rubber
- Moisture & chemical resistant

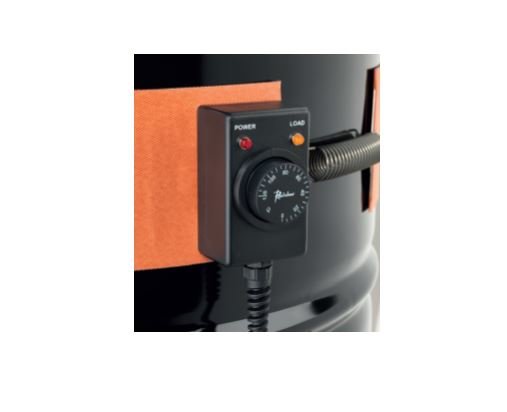

- Capillary thermostat 0-180°C or digital thermostat 0-120°C
Applications
The heating belt is used for heating substances and to reduce the viscosity of liquids. This is done for substances such as soaps, fats, nutrients, varnishes and chemicals for easy pumping or transferring.
Heating variants.
25L - 125 x 800 mm - 300W
50L - 125 x 940 mm - 500W
105L - 125 x 1300 mm - 800W
200L - 125 x 1665 mm - 1000W
200L - 180x 1665 mm - 1000W
200L - 180x 1665 mm - 1500W
Specifications
- Material: PFD multi-core resistance wire between silicone rubber and fiberglass layers
- Control: Capillary thermostat 0-180°C or digital thermostat 0-120°C
- Connection cable: 2 meters HO7RN-F
- Mounting: Stainless steel plates or hooks & springs
- Voltage: 230V
- Power: 300W - 1500W
*Note: when purchasing some products on our webshop, a basic knowledge of electrical engineering is required (for installation).
