Product description

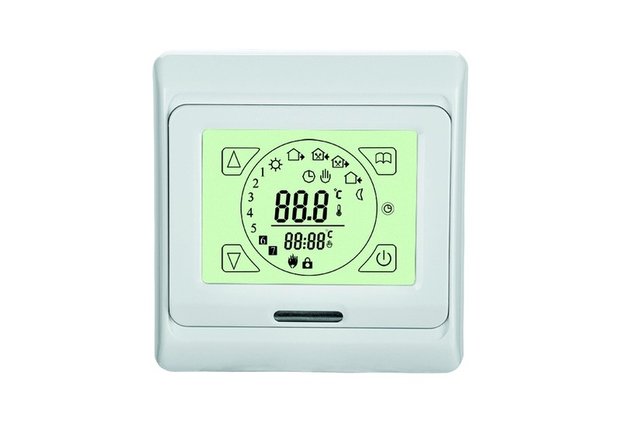

Touch thermostat
Touch thermostat for underfloor heating and infrared sauna. This electronic built-in control can directly control electric heating elements, including heat cables and floor heating mats. You can program the touch thermostat separately for each weekday.
Control for central heating underfloor heating
With the touch thermostat, you can also control valves (control valves) for conventional underfloor heating. For example, to control the heating temperature per room. The touch thermostat has a built-in sensor and a floor sensor. The latter can also be used as a temperature limiter.
Applications
Room sensor + floor sensor
The touch thermostat is robust with a sturdy metal plate under the finishing edge. The built-in sensor (metal edge under display) makes direct contact with the environment so that a change in room temperature is quickly registered.
Programmable clock thermostat
Per day you can program the temperature and turn-on time at 6 different times. The touch thermostat already has a default setting, which you can adjust yourself. Setting modes: automatic, manual or comfort mode. This is a manual “overruling” - until the next switching moment. By means of an icon you can always check whether the heating is on.
Specifications
- Type: recessed (wall box)
- Connection voltage: 230 V
- Connected load: 3,600 W
- Switch contact / relay: 16 A
- Power consumption: approx. 2 W
- Dimensions: 86 x 86 mm
- Installation depth: 28 mm
- Color: off white
- Display: 60 x 45 mm LCD
- Backlight: yes
- Security class: IP20
- Frost protection: yes (+5 °C)
- Control range: +5...35 °C
- Setting steps: +/- 0.5 °C
- Floor sensor: approx. 2.5 m
- Weight: 230 g
- Quality mark: CE
- Manual: English
*Please note that a basic knowledge of electrical engineering is required (for installation) when purchasing some products on our web shop.
