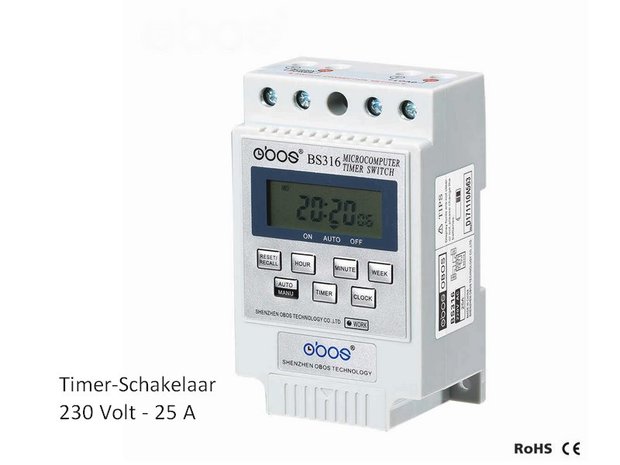

Timer Switch - BS316
0 Review | Add review
Timer switch DIN-rail version. Menu-driven weekly program and memory.

Product number

VN11010451

€ 45,75
excl. VAT
€ 55,36
incl. VAT
Quantity:
Order


Product description

The programmable timer switch can switch power up to 5,500 Watts. It is intended for placement on a DIN rail in a switch cabinet. In addition, the housing is equipped with 3 screw holes for wall mounting.

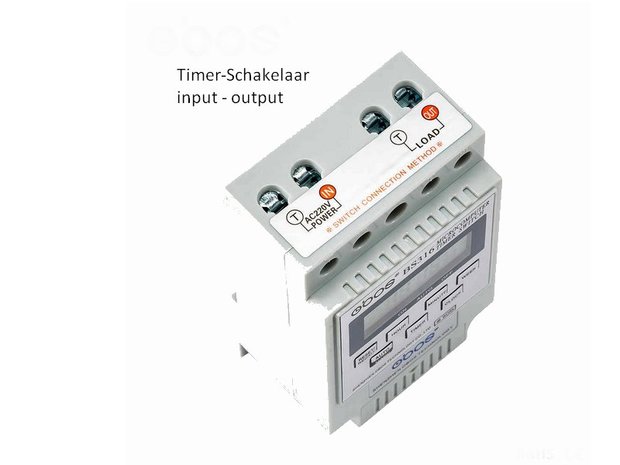

Connecting is easy: 2 wires in and 2 wires out. This digital timer switch contains a menu-driven microcomputer.

Applications

The timer switch can automatically switch on electric heating cables, for example a driveway heater that must automatically switch on for 45 minutes every morning during the winter. Other applications: switching on boilers, fans, electric heating, neon lighting and electrical appliances.

Note: You can set the times separately per weekday, or a separate program for each day. The timer switch is not intended for placement in a damp room, such as a stable.

Specifications

  • Working voltage: 220/230 V
  • Mains frequency: 50...60 Hz
  • Switching contacts: 1 x 25 A
  • Switching capacity: < 5500 W
  • Own consumption: < 4 VA
  • Temperature sensor: n.a.
  • Display: 45 x 16 mm LCD
  • Working environment: -10...+50 ºC
  • Setting range: 1 min...168 hours
  • Minimum duration: 1 min
  • Number of setpoints per day: 10
  • Program: 7 weekdays
  • Frost protection function: no
  • Number of push buttons: 7
  • Memory function: yes
  • Design: 35 mm DIN rail
  • Dimensions: 120x75x52 mm

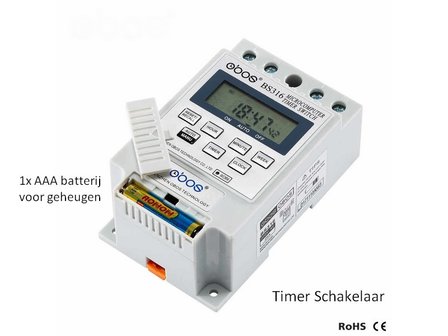

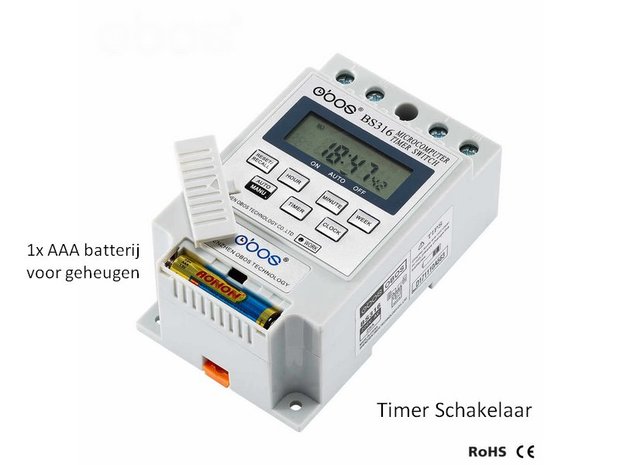

  • Battery: 1x AAA (1.5 V)
  • Weight: 200 g
  • Colour: off-white
  • Safety class: IP20
  • Manual: English only
  • Earth: n.a.
  • Approval mark: CE
NB: subject to change.
*Please note: when purchasing some products from our webshop, a basic knowledge of electrical engineering is required (for installation).
