Thermostat underfloor heating | EB-205
Thermostat underfloor heating | EB-205
0 Review | Add review
Thermostat | Floor heating | Room and floor sensor

Product number

VN1040021

€ 89,55
excl. VAT
€ 108,36
incl. VAT
Quantity:
Order


Product description

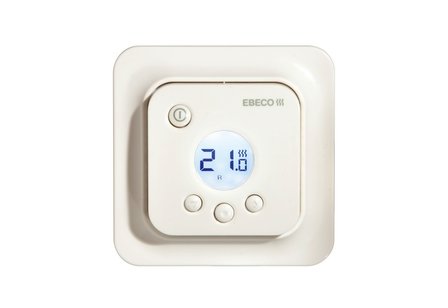

Floor heating thermostat with floor and room sensors and is suitable for both home and public environments. The floor heating thermostat has an LCD screen, simple button operation and the possibility of setting an energy-saving program.

Applications

Features EB-Therm 205 thermostat

EB-Therm 205 is a floor heating thermostat with backlit LCD display and energy-saving program, where times and temperatures can be adjusted individually. The thermostat is microprocessor controlled which minimizes temperature fluctuations and ensures even heating. EB-Therm 205 can be used as floor thermostat, room thermostat or as combined room thermostat with overheat protection in the floor.


Specifications

  • Connection voltage: 230 VAC ±10 %, 50 Hz
  • Adapted for frame systems: Schneider Exact, ELKO Plus/RS
  • Color: white (RAL 9003 & 9010)
  • App control possible: No
  • Power consumption: < 0.5 W
  • Extension cable sensor: max. 50 m, 2 * 1.5 mm²
  • Subfloor temperature range: 5 C - 45 ºC
  • Reminder program after power failure: 36 hours
  • Enclosure class: IP21
  • Operating difference: ± 0.3 ºC
  • Air temperature range: 5 C - 45 ºC
  • Temperature limiter: 15 ºC - 45 ºC
  • Warranty: 5 years manufacturer's warranty

*Please note that a basic knowledge of electrical engineering is required (for installation) when purchasing some products on our web shop.
