Product description

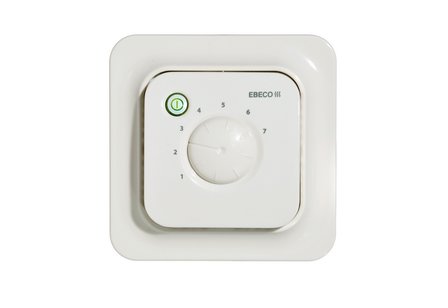

Thermostat with on-off button
Universal temperature control with sensor in the floor. Suitable for bathrooms, toilets and other rooms that need occasional or irregular heating. Attractive design with rotary temperature dial. Incorporates “fuzzy technology”, saving you energy.
Simple operation, no programming is required. On/off switch includes a 2-color indicator light. Intended for mounting in standard wall box. Includes two different fronts, for switchgear from Elko, Gira, Merten and Busch & Jaeger, among others.
Applications
This thermostat has an internal sensor (room temperature) and an external sensor (for measuring the temperature in the floor). The cable of the floor sensor may be extended to as much as 50 m.
You can connect multiple cables or mats for electric heating to one (1) control. The control is fully manually adjustable; this is not a clock thermostat. Setting 3 is the usual set point. When you push the button the thermostat becomes active and the green light is on. When power goes to the heater, the light is red. So you can immediately see what is happening.
Specifications
- Manufacturer: Ebeco AB
- Type: EB-Therm 55
- Connection voltage: 230 Volt
- Switching contact: 16 Ampere
- Max. connected load: 3,500 W
- Dimensions: 81x81x40 mm
- Safety class: IP21
- Control range: +10...45 °C
- Floor sensor: 3 m connection cable
- Temperature setting: rotary knob
- On/off switch: with lamp
- Including: 2 fronts (white)
- Floor sensor cable: 3 m
- Manual: a.o. English
- Color: neutral white
- Hallmark: CE
*Please note that a basic knowledge of electrical engineering is required (for installation) when purchasing some products on our web shop.
