Product Description

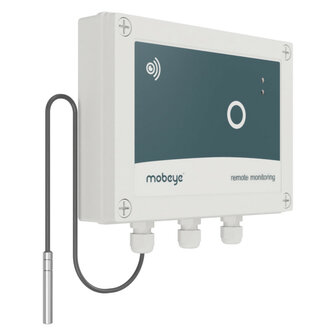

The Mobeye ThermoGuard TwinLog CML4275 is an extremely precize and user-friendly temperature monitor for outdoor use and for the industrial environment. As soon as the temperature deviates from the set limits, an alarm notification follows. In addition, it logs temperature values at a self-selected interval and displays them in the online portal. The CML4275 is suitable for professional temperature monitoring of conditioned rooms, storage locations and of the outside temperature.
If you are looking for a temperature monitor capable of monitoring specific application areas such as cold rooms and refrigerated storage locations, the
Thermoguard 4255 offers a worthy alternative.
Features:
- Alarm is possible via app, call, text message and email
- Temperature alarms and logging
- Power failure monitoring (if connected to external power)
- Two NO/NC alarm inputs, output and siren
- Full insight in Mobeye Internet Portal
Applications
The temperature sensor is digital and highly accurate. Besides the temperature sensor, the Mobeye ThermoGuard (CML4275) has two NO/NC inputs for connecting alarm contacts and sensors. This also monitors the status of a device or external sensor, such as an air conditioner or door magnet. In the event of an alarm, the internal piezo siren can sound as an alarm indicator. The CML4275 has an (open collector) output to enable an external device. Do you want extra precision monitoring of your industrial plant? Then check out our
IP65 outdoor cabinet that adds an extra layer of precise monitoring to your existing installation.
Specifications
- Contents: CML4275, 1x digital temperature sensor, 2x CR123 batteries & sim card.
- Operation: On and off via button, time schedules and SMS.
- Temperature limit (per sensor): between -35 ... +70°C.
- Cable length: 1 meter
- Accuracy: 0.5°C between -30° and 55°C
- Inputs: 2x digital temperature input, 2x NO/NC input (potential-free), 1x 12-24V DC (+/-2V)
- Output: open collector with max 200mA
- Power supply: 2x CR123 lithium batteries / 12-24V DC (regulated) + 2x CR123 lithium.
- Battery life: 1 year (battery powered), 3 years (externally powered).
Click on the following link to view the SIM card cost of the standard SIM card supplied from the manufacturer: https://www.mobeye.com/sim-portal [mobeye.com]
Tip: Is your application not listed here? Then see our
full range of temperature monitoring products here.
