Product description

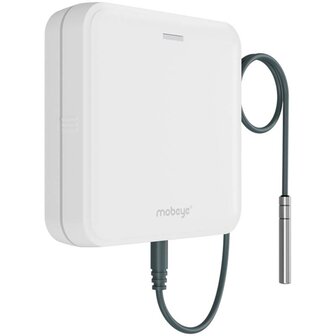

The Mobeye ThermoGuard is a reliable temperature guard that offers full insight into the temperature progression with additional monitoring of temperature limits.
In an alarm situation it sends notifications via push message, telephone call, text message or e-mail. In addition, it logs temperature values and sends them to the online portal for display as a graph, gauge and table.
Applications
The sensor in the temperature monitor is digital and highly accurate. The sensor is factory calibrated and gives the value accurate to decimal places. One sensor is included as standard. A second sensor is available as an accessory. The interval for logging the values and the transfer to the portal are self-adjustable.
The Mobeye ThermoGuard TwinLog can run for a long time on batteries and therefore independent of an external power source. The power supply has direct monitoring and in case this supply fails a notification follows quickly. Besides the temperature sensor, the Mobeye ThermoGuard (CML4255) has two NO/NC inputs for the connection of alarm contacts and sensors.
Do you prefer to set a maximum of 5 contacts instead of an unlimited number? Then our
night frost detector could be a good alternative.
The temperature monitor is used in different types of applications, some examples are the following:
- Medical refrigerators and freezers
- Refrigeration and powder storage
- ICT server room
- Paint drying processes
- Animal housing
Are you looking for a temperature monitor that can be used for general industrial applications and/or outdoor use? Then we also have the
CML4275 a temperature monitor often used for storage rooms, industry, as a night frost detector and for outdoor use.
Specifications
- Contents: CML4255, 1x digital temperature sensor , 2Xcr123 batteries , sim card
- Operation: On-off by button, time schedule and sms.
- Temperature sensor cable length: 1M
- Accuracy: 0.5°C between -30°C ... +70°C
- Inputs: 2x digital temperature input. 2x NO/NC input (potential-free) & 1x 12-24V DC (+/-2V).
- Output: open collector (at external voltage) max 200mA
- Power supply: 2x CR123 lithium batteries / 12-24V DC (regulated) + 2x CR123 lithium
- Battery life: 1 year (battery powered) and 3 years (externally powered)
- Dimensions: 94 x 94 x 28 mm
- Color: White
Click on the following link to view the SIM card cost of the standard SIM card included from the manufacturer: https://www.mobeye.com/sim-portal [mobeye.com]
Tip: In case you need an extra sensor to keep on hand as a spare we sell the
T-GSM.
