Temperatuursensor DS18B20
Temperature sensor DS18B20
0 Review | Add review
Semiconductor sensor with 2 m cable.

Product number

VN11010301

€ 12,95
excl. VAT
€ 15,67
incl. VAT
Quantity:
Order


Product description

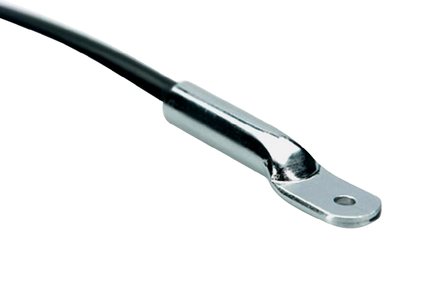

Semiconductor temperature sensor in stainless steel sleeve with mounting hole. equipped with RJ-45 plug. The connecting cable may be extended up to 50 meters. Volume discount: 5 and 10 pieces.

Applications

Connections RJ45 connector
Vdd = pin 3 (power supply +3...5.5V)
DQ = pin 4 (signal I/O: data input/output)
GND = pin 5 + 6 (common ground)

Of course, you can cut the connector to make a different connection.

Specifications

  • Manufacturer: Maxim
  • Range: -55...+125 °C
  • Implementation: metal
  • Diameter: 8 mm Ø
  • Length/width: 48x11 mm
  • Mounting hole: 3 mm Ø
  • Cable: PVC, 2 m
  • Connector: RJ45
See the datasheet for all technical info.
*Note: when purchasing some products on our webshop, a basic knowledge of electrical engineering is required (for installation).
