Product description

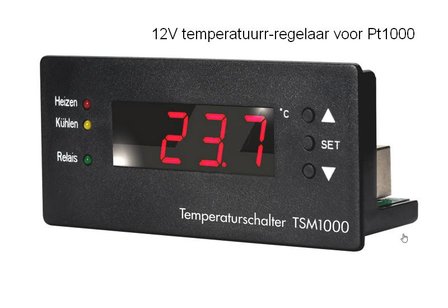

Temperature controller at 12 Volt
Temperature controller for one (or more) heat cables up to 1000 watts. Compact reading and control unit for installation. Universal design, also suitable for controlling heating or cooling by an electrical device.
This temperature controller is very easy to operate by means of 3 push buttons. Its switching temperature can be set in increments of one (1) degree Celsius. By the way, you can also use it as an electronic thermometer, for remote temperature reading/checking.
The set switch-on and switch-off temperatures are retained in memory in case of power failure. The temperature controller has a memory (data log function) for the highest and lowest temperature measured. Pressing 2 keys simultaneously deletes the measured value.
Applications
Switching output 5 Amps
The temperature controller is equipped with a voltage-free (potential-free) switching contact. This single-pole contact can switch different voltages (e.g. 12 V, 24 V or 230 V). When the contact is “ON”, the green lamp is lit.
The temperature controller operates on 12 Volt DC voltage from an (on-board) battery or the optional mains adapter. It has low power consumption, which is important e.g. for use in a vehicle.
Sensor cable to temperature controller
You may extend the sensor signal line up to 50 m. In case of interruption or short circuit in the sensor circuit, an error message appears and the relay contact is disabled.
Specifications
- Sensor input: Pt1000
- Supply voltage: 10...15 Volt dc
- Internal current consumption: approx. 60 mA
- Output: potential-free make-contact
- Switching current: 5 A (250Vac / 30Vdc)
- Switching capacity: max. 1000 Watt
- Display: LED red, 12.7 mm high
- Indicator lights: 3x LED
- Display range: -99...+850 °C
- Switching hysteresis: freely adjustable
- Accuracy: +/-0.5° (-10...+85°C)
- Memory: min. and max. temperatures
- Display resolution: 0.1°C
- Sensor input: 2-pin terminal block
- Dimensions: 101 x 47 x 35 mm
- Installation opening: 97 x 43 mm
- Manual: German + English
- Safety class: IP20
- Please note: order temperature sensor separately!
- Works with any Pt1000 sensor.
Note: Basic knowledge of electronics is required for this product.
The
mains power supply is not included as standard, as you only need it if the temperature control is to operate on mains voltage.
