Product description

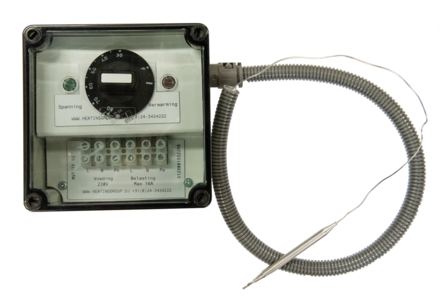

Temperature control with external or room temperature sensor, particularly suitable for controlling heating cables for frost protection. You can connect a heating cable or fan to this electronic control. The compact plastic housing is intended for wall mounting and is equipped with a rotary knob and 2 indicator lights.
The switching contact (via a relay) supplies the heating cables or fans with 230 volts if the temperature measured (by the sensor) is below the set temperature.
Applications
Temperature control variants
- MVT 0-40°C - Capillary sensor for room temperature
- MVT 0-40°C - Capillary sensor 850mm
- MVT 30-85°C - Capillary sensor 850mm
Specifications
- Dimensions: 130x130x75mm
- Connection capacity: 3680W
- Switching contact: 16A (changeover)
- Connection voltage: 230 Volt
- Own consumption: approx. 1.5W
- Control range 1: 0...+40°C
- Control range 2: +30...+85°C
- Sensor: included
- Indicator lights: 2x LED
- Safety class: IP65
- Quality mark: CE
*Please note: when purchasing some products from our webshop, a basic knowledge of electrical engineering is required (for installation).
