Schakelcontact met interne doorverbindingen
Switch contact 16A
0 Review | Add review
230 V switching contact | with 6 connecting wires

Product number

-

€ 0,00
excl. VAT
€ 0,00
incl. VAT
Quantity:
Order


Product description

Intended for controlling an additional 230 Volt group on a thermostat. The 230V control current for this external relay comes from the switch contact of the thermostat control.

The relay with switching contact is dust and waterproof. Encased in a compact plastic box with mounting holes. Suitable for both flush and surface mounting.

Applications

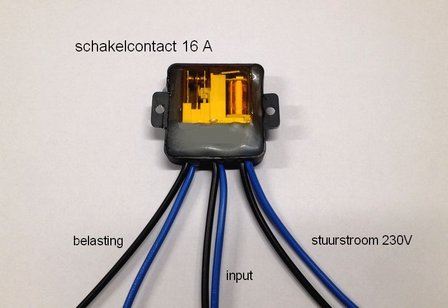

Six connection wires / internal through connections:
-wire 2 core > control current 230V (relay coil).
-Blue + black > input voltage of 230V group
-blue + black > switching contact for heat cable
(the two blue wires for the neutral are internally interconnected)

Specifications

  • Control voltage: 230 Volt
  • Switch contact: 1x make
  • Maximum current: 16 A
  • Load: max. 3,500 W
  • Safety class: IP65
  • Version: cast
  • Connection wires: 6x 15 cm
  • Mounting holes: ∅ 3 mm
  • Dimensions: 40x40x12 mm
  • Weight: 50 g
*Note: basic knowledge of electrical engineering is required (for installation) when purchasing some products on our webshop.
