Product description
Snow thermostat on roof or in gutter
Electronic control system for melting ice and snow in gutters and drainpipes or on roofs. Activates electric heating for defrosting snow, sleet or ice.
This automatic control prevents unnecessary energy consumption. As soon as the moisture sensor is dry, the system switches off again. The snow thermostat can control multiple heating cables (in an outdoor environment).
Applications
Thermostat measures temperature and moisture
The snow thermostat consists of three components, which together form a complete control system for both measuring the outside temperature and detecting moisture. In dry frost, it is not necessary to switch on heating cables on the roof or in the gutter.
The moisture sensor is mounted in a place where the melt water runs along. For example, in a gutter or drainpipe. This robust metal sensor is equipped with a 10 m weatherproof cable, which can be extended to 200 m if desired. The temperature sensor is supplied without a cable. You can use a normal signal cable for this, up to a length of 50 m.

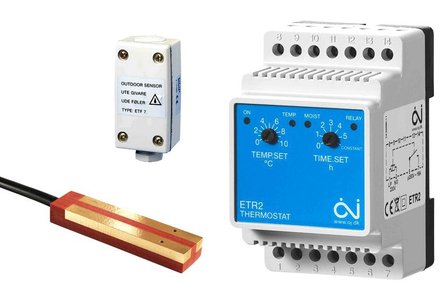

This snow thermostat set includes
1x electronic control ETR2-1550
1x humidity sensor ETOR-55-US224
1x temperature sensor ETF-744/99
1x technical instructions (multilingual)
1x sensor instructions (multilingual)
1x user manual (multilingual)
Specifications
- Type: ETR2-1550
- Mounting type: DIN rail
- Dimensions: 86x52x59 mm
- Weight: 255 g
- Connection voltage: 230 V
- Own consumption: 3 VA
- Max. Connection capacity: 3,600 W
- Switching contact: 16 Ampere
- Control range: 0…+10 °C
- Indication: 4x LED signal lamp
- Switch-off delay: 0…5 hours
- Safety class: IP20
- Approval mark: CE
- Manual: English+German
- Technical data humidity sensor
- Type: ETOR-55-US224
- Dimensions: 110x28x17 mm
- Temperature: -20…+70 °C
- Safety class: IP68
- Connection cable: 10 m
- Total weight: 765 g
- Approval mark: CE
Technical data temperature sensor
- Type: ETF-744/99
- Dimensions: 85x50x35 mm
- Weight: approx. 60 g
- Range: -50…+70 °C
- Mounting: on facade/wall
- Approval mark: CE
*Please note: When purchasing some products in our webshop, a basic knowledge of electrical engineering is required (for installation).
