Product description

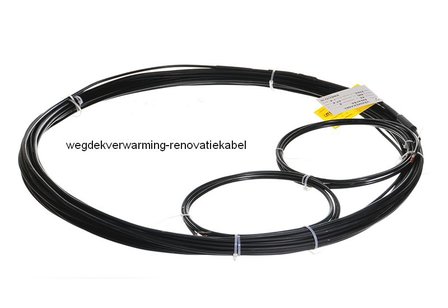

Robust heat-resistant heat cable for renovation of road surface heating. Method: apply to the old road surface, secure with mounting strip and then cover with asphalt.
Applications
Road heating 400 volts
This cable has high power, so less cable length is needed. This is advantageous when replacing a defective road surface heater. The heat cable is reinforced with solid copper, protected against corrosion with a hard plastic jacket and resistant to hot asphalt up to 250 degrees Celsius.
Surface area | Length | Power
These surfaces apply at a heat output of 300 watts per m², as is usual for roadway and ramp heating.
8.0 m² - 42 m - 2,380 Watt
11.5 m² - 58 m - 3,450 Watt
12.5 m² - 67 m - 3,800 Watt
15.0 m² - 79 m - 4,500 Watt
18.0 m² - 95 m - 5,350 Watt
Specifications
- Supply voltage: 400 V
- Power: 60 Watt/m
- Connection cables: 2x 3 m
- Cable diameter: approx. 7 mm
- Bend radius: 45 mm
- Armor: solid copper
- Outer jacket: HDPE
- Temperature: <250 ºC
- Manufacturer: Ebeco AB
- Hallmark: CE
*Note: when purchasing some products on our webshop, a basic knowledge of electrical engineering is required (for installation).
